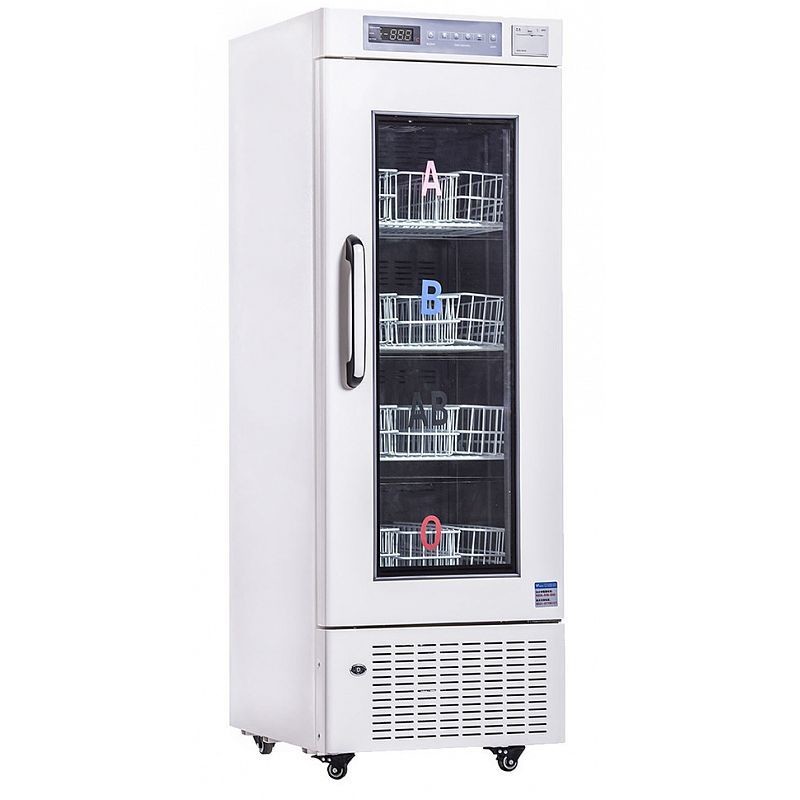

4°C blood bank refrigera...

Type(Shelves/ Drawer)/Marterial

Shelves/Steel wire with plastic dip coating

Cooling type(Forced air cooling/direct cooling)

Fan cooling

Defrost( automatic/manual)

Automatic

Technical Parameters

Refrigerant

R134a

Power comsuption(kWh/24h)

2.22

Noise level(db)

51.2dB(A)

Ambient temperature（℃）

10~32℃

Temperature range

4±1℃

Control

Compressor brand/Qty

EMBRACO/3

Evaporator type

Radiator-fan

Evaporator marterial

Brass aluminum fins

Condenser type

Tube type

Condenser material

Bondi tube

Sensor type

NTC

Temperature controller

Electronic temperature controller

Display

Digital

Electrical data

Voltage/Frequency（V/Hz)

220/50Hz

Power(W)

200

Electricity (A)

0.8

Compressor

/

Material

Internal material

Stainless steel plate

External material

Sprayed steel plate

Insulation

PU foam

Dimensions

Capacity（L）

208

450ml blood bags

132

Net/Gross weight (KG)

67/75

Overall size（W*D*H mm)

522×600×1550

Inner size（W*D*H mm)

432×462×978

Packing size（W*D*H mm)

572×685×1570

Alarm

High/low temperature

√

Power off

√

Abnormal voltage

/

Temperature controller malfunction

√

Backup battery malfunction

√

Condenser malfunction

No

Ambient temperature

10~32℃

Door ajar

√

Accessaries

Caster

√

Foot

/

Outer door

1/PU foam/LOW-E

Inner door

4

Outer door locker

1

Test hole( position/inner diameter)

1

Light(LED/CFL)

LED

USB connector

/

Remote alarm

/

Temperature recorder

Optional

RS232/485connector

/

CO2 backup system

/

LN2 backup system

/
