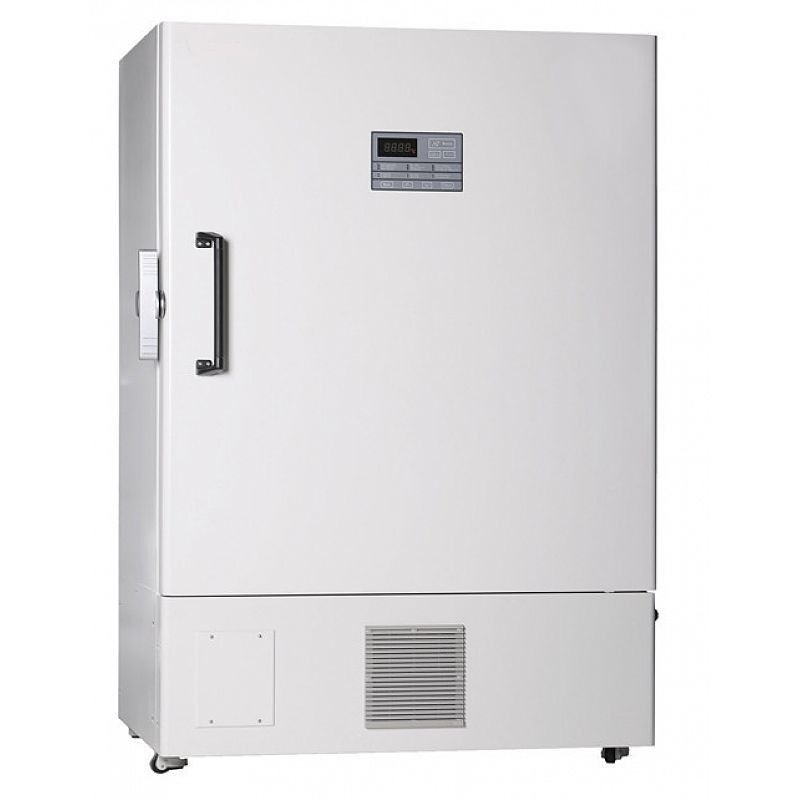

-86°C vaccine refrigerator
| Technical data | Door | 2 |
| Shelves | Shelves | |
| Cooling type(Forced air cooling/direct cooling) | Direct cooling | |
| Defrost( automatic/manual) | Manual | |
| Refrigerant | HFC | |
| Power comsuption(kWh/24h) | 14.7 | |
| Noise level(db) | 55 | |
| Ambient temperature（℃） | 10~32℃ | |
| Temperature range（℃） | -60~-86℃ | |
| Control System | Compressor brand/Qty | 2 |
| Evaporator type | Coil type | |
| Evaporator marterial | Copper tube | |
| Condenser type | Copper tube fin | |
| Condenser material | Brass aluminum fins | |
| Sensor type | PTC | |
| Temperature controller | Electronic temperature controller | |
| Display | Digital | |
| Power | Voltage/Frequency(V/Hz) | 220/50Hz |
| Apparent power | 1540W | |
| Power(W) | 808W | |
| Electricity (A) | 7 | |
| Dimensions | Capacity | 688 |
| Net/Gross weight (KG) | 260/290 | |
| Overall size（W*D*H mm) | 1354×1072×1907 | |
| Inner size（W*D*H mm) | 990×607×1140 | |
| Packing size（W*D*H mm) | 1445×1070×2128 | |
| Alarm System | High/low temperature | √ |
| Power off | √ | |
| Abnormal voltage | √ | |
| Sensor malfunction | √ | |
| Filter screen check | √ | |
| Temperature controller malfunction | √ | |
| Backup battery malfunction | √ | |
| Condenser malfunction | √ | |
| Ambient temperature | √ | |
| Door ajar | √ |
