4 Motor Electric Integrated Nursing Care Bed 2050x960mm with Toilet Aperture Function

DH02 4 Motor Electric Integrated Nursing Care Bed with Toilet Aperture

Manual-electric integrated full-leg-bending nursing care bed for long-term care, nursing homes and home rehabilitation.

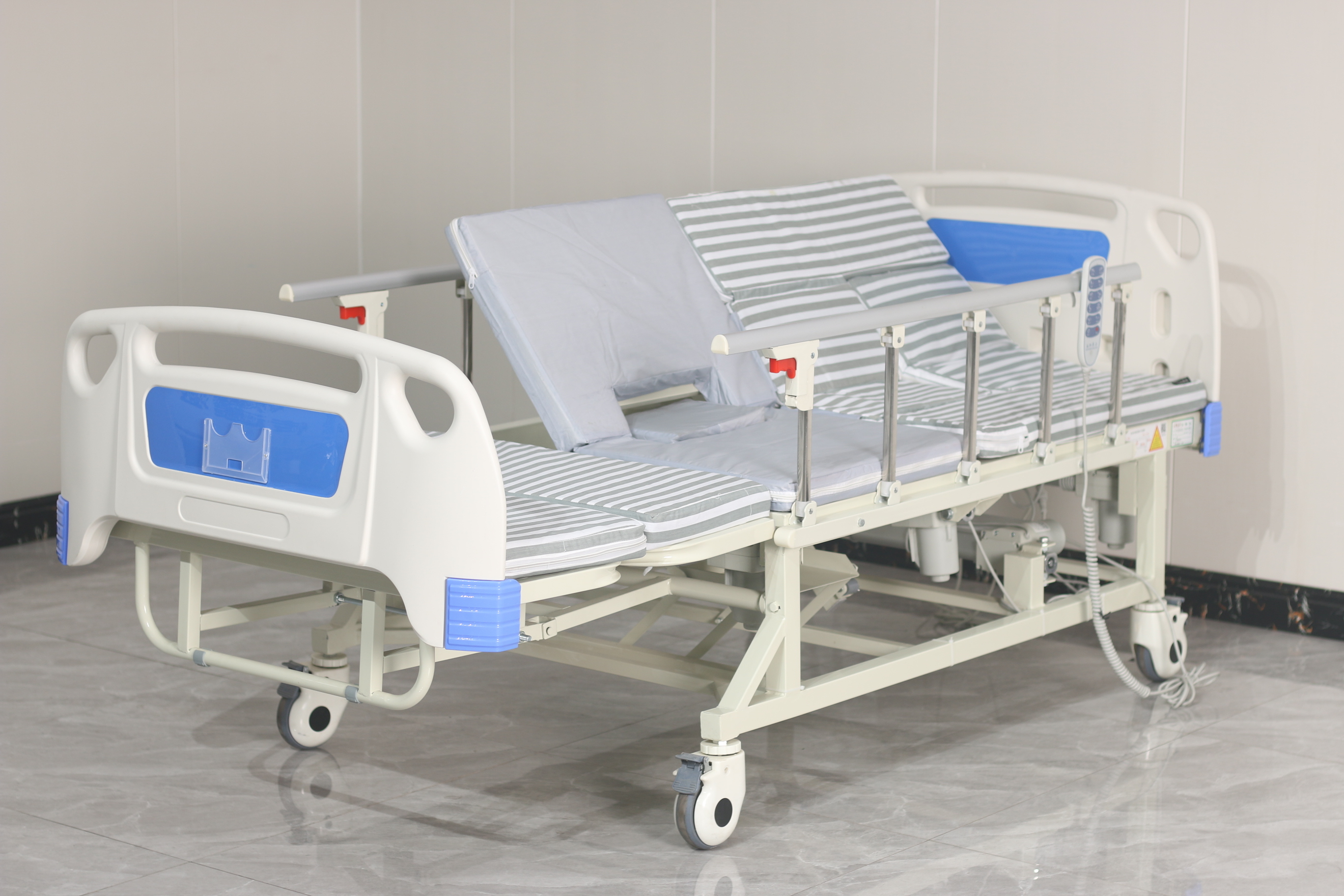

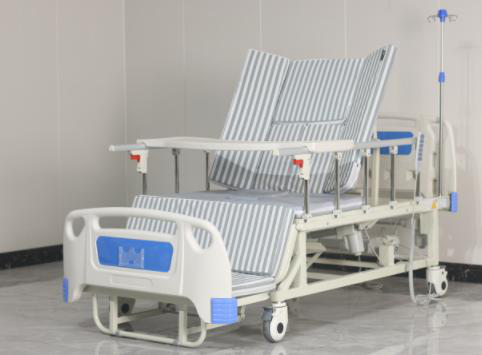

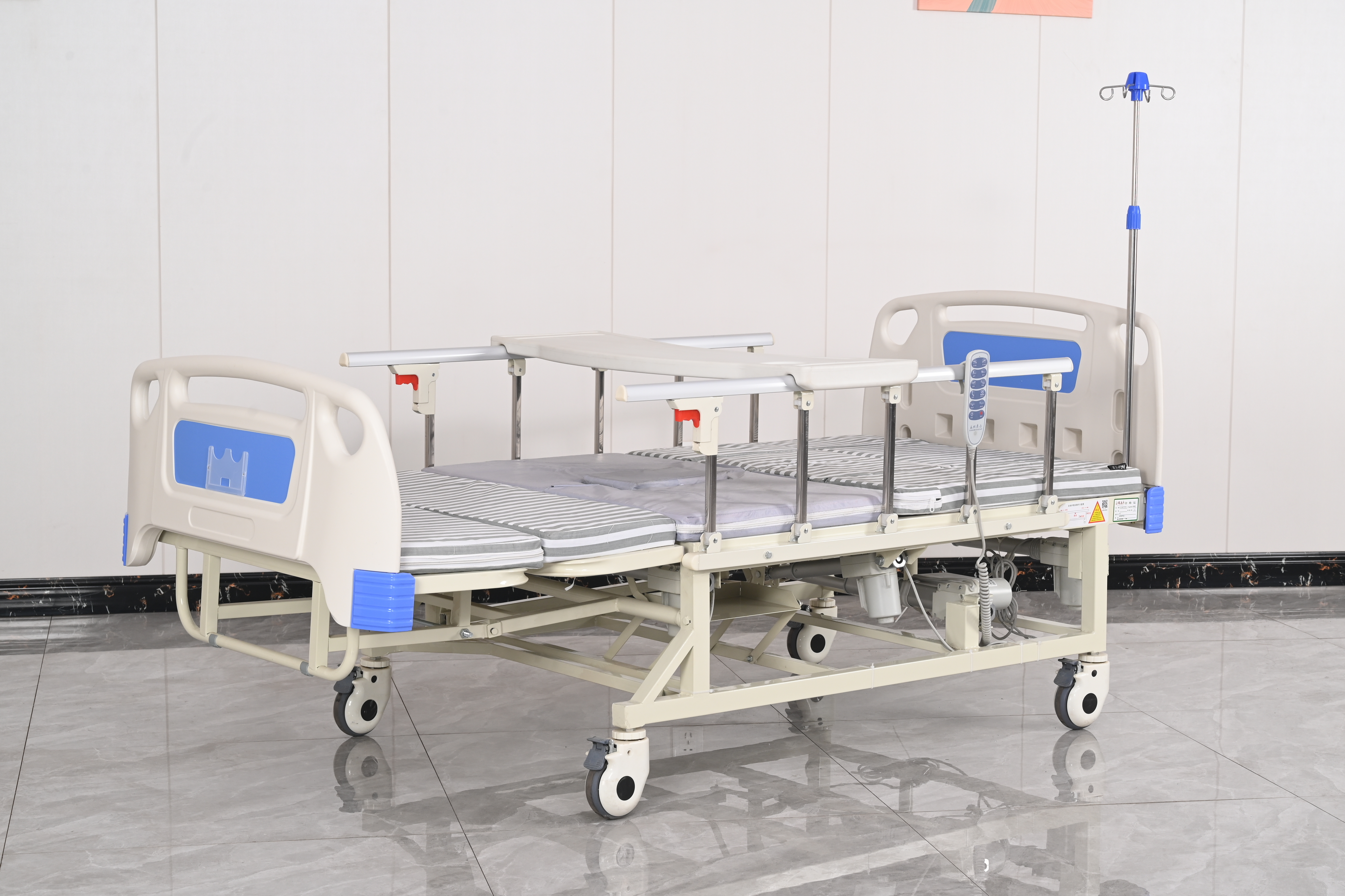

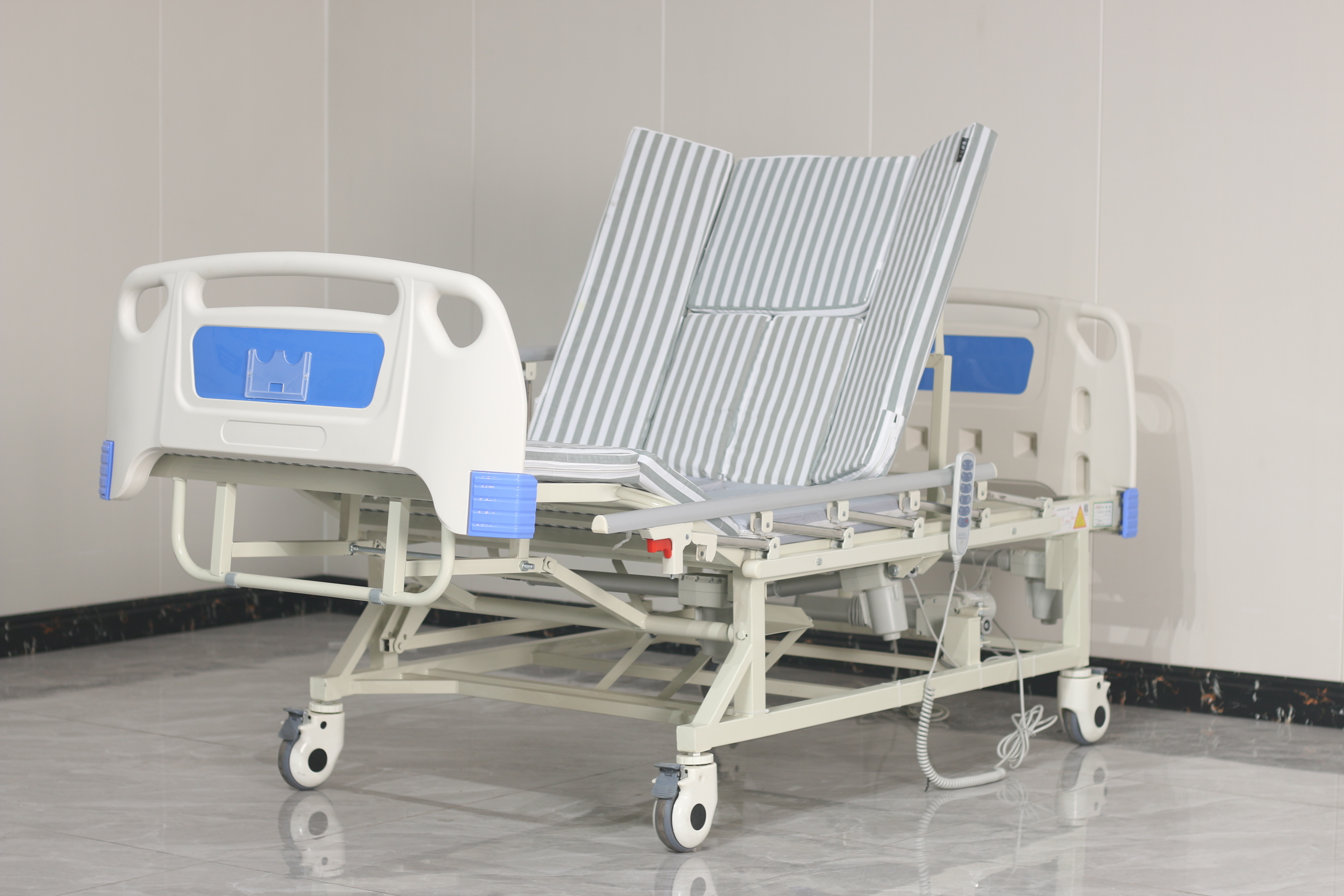

Full view, side view, mattress and side rail layout, reinforced toilet aperture structure.

This 4 motor electric integrated nursing care bed combines powered left-right turning, backrest elevation, leg lifting and toilet-position conversion in one platform. The integrated toilet aperture lets caregivers use a bed pan without moving or lifting the patient, and the recessed inner-hidden motor ends remove the entanglement risk common on exposed-motor beds.

Four Powered Functions plus Timed Turning

• Electric left-right turning 0-45 degree, with 30-minute and 45-minute timed turning programs
• Electric backrest elevation 0-70 degree with anti-side-slip inward moving side panels
• Electric leg section lifting +20 to -65 degree, 100kg leg support capacity
• Electric toilet-position conversion through a 310 x 220mm reinforced aperture

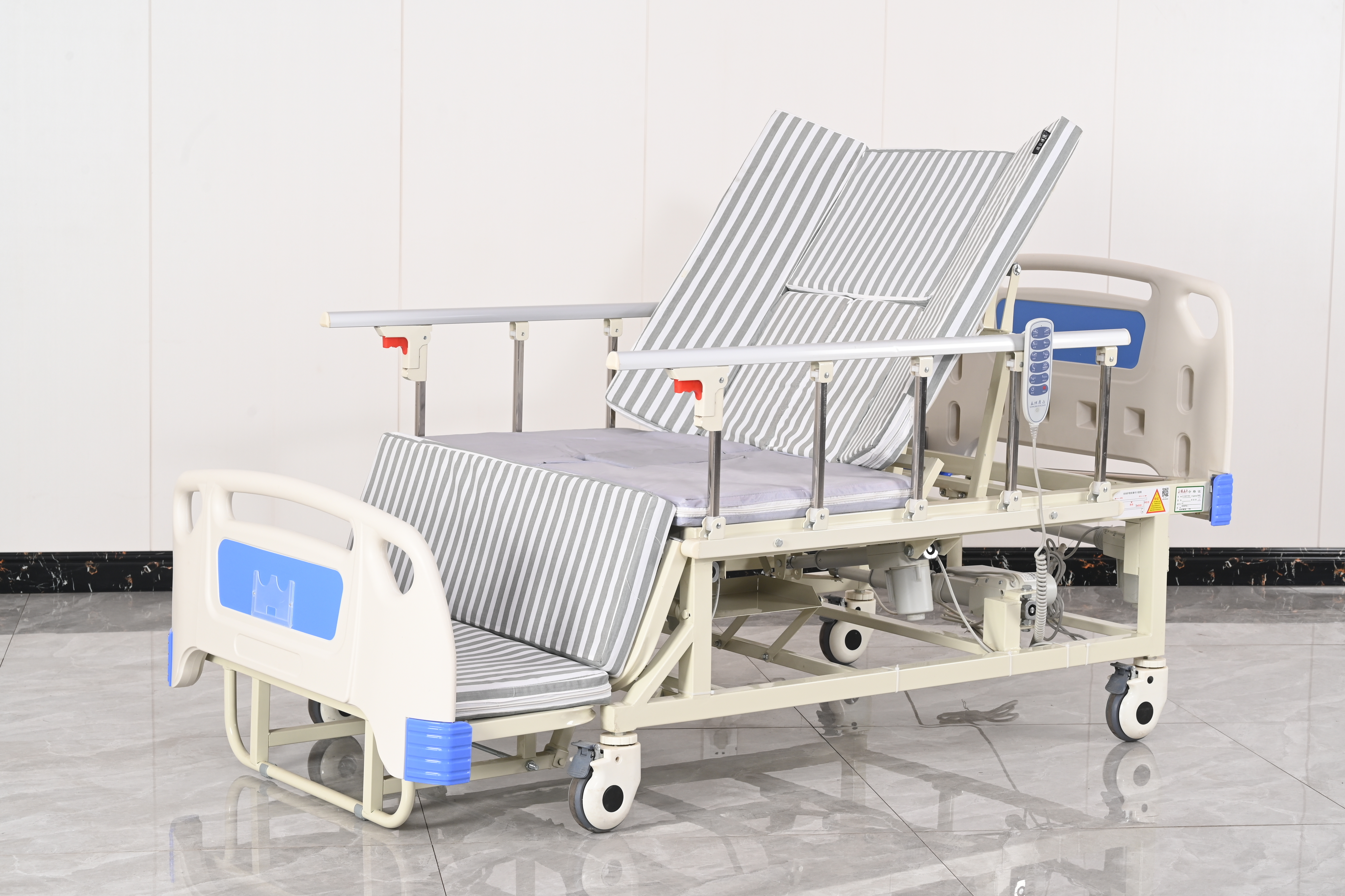

• One-key sitting-up linkage: backrest rises while leg section drops to form a seated surface

Safety and Nursing Design

• Full manual operation on every function during power failure, so nursing work never stops
• Emergency stop button on the backlit handheld controller halts all movement instantly
• One-key reset returns the bed to flat horizontal status without resetting each function
• Reinforced toilet aperture supported by Phi 20mm solid steel rod and 1.2mm stamped bearing plate
• Four widened pulleys on backrest and rotating pulleys on side turning reduce friction noise
• Rounded-corner frame protects bedding and mattress from scratching
• Curved leg-section nylon floor bumpers stop floor scratching at low leg positions

Technical Specifications

Standard Accessories

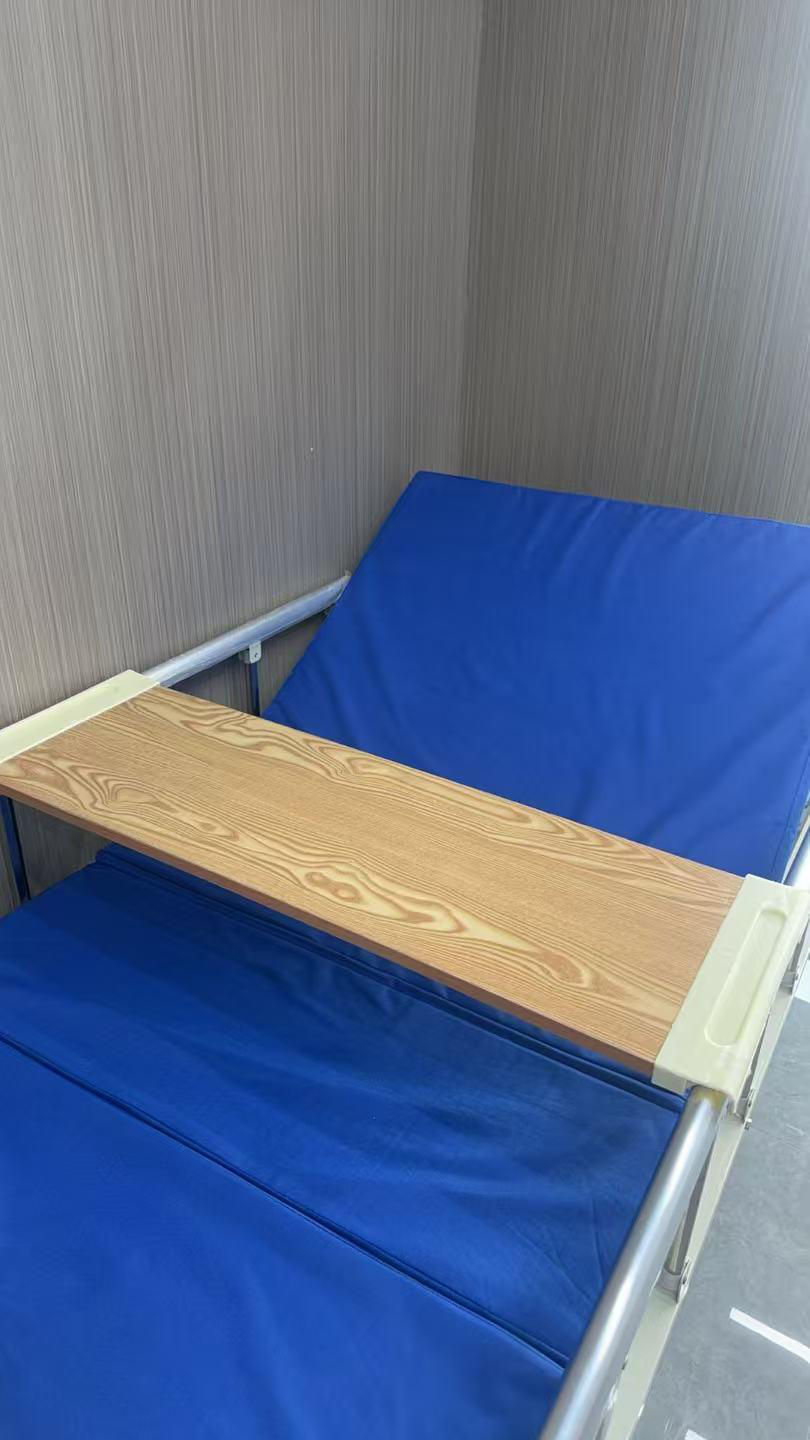

Handheld controller, control box, power cord, silent brake casters, aluminum alloy side railings, over-bed dining table, 6cm mattress with printed cotton cover, hair-washing basin, bed pan, IV infusion stand, ABS head board and foot board, user manual and warranty card.

Ordering and Service

No minimum order quantity, single set sample orders accepted and mixed models allowed in one container. OEM logo on foot board, custom fabric color and 110V or 220V configuration supported. Spare parts kit (handheld controller, control box, caster) ships with bulk orders. Send your ward quantity, destination port and voltage requirement for a firm quotation and loading plan.
