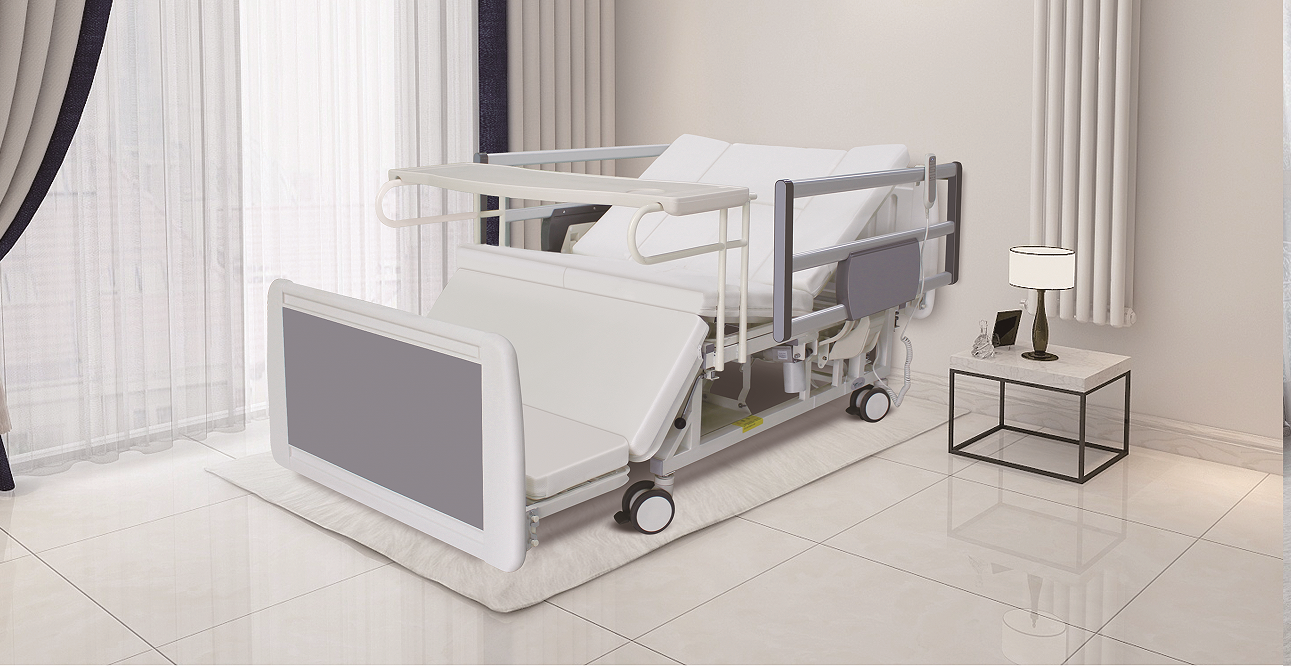

5 Function Electric Turning Nursing Bed BR-HEB53
A low-profile five-function nursing bed built for wards, nursing homes and home care, where the patient needs turning assistance and in-bed toileting without being moved. The backrest and leg section are driven electrically by handset, while left and right turning is dialled in through the same control, so a single carer can reposition the patient and relieve pressure areas without lifting.
1. Specification and Size
Overall dimension 2080 x 980 x 450 mm. The low 450 mm deck height reduces the risk of injury in the event of a fall and makes standing transfer easier for frail patients.
2. Bed Surface
The sleeping platform is welded from 10 x 50 mm rectangular flat tube with wall thickness of at least 1.5 mm. Ventilation openings cover no less than 20 percent of the total deck area, so moisture and heat disperse under the mattress and the surface can be washed and disinfected quickly. Dynamic load rating is at least 250 kg and static load rating at least 400 kg. The backrest section alone carries at least 150 kg, verified by a third party load test report issued by a CMA and CNAS accredited laboratory.
3. Head and Foot Boards
Streamlined PP head and foot boards in pure engineering plastic, hollow moulded in a single blow moulding pass, colour selectable. The material resists fading and ageing, holds high strength and will not shatter on impact. The smooth closed shape leaves no sanitation dead corners, so ward cleaning takes seconds. A concealed locking switch keeps each board firmly seated yet allows quick removal, and the boards can serve as a CPR emergency function when fast access to the patient is required.
4. Bed Frame

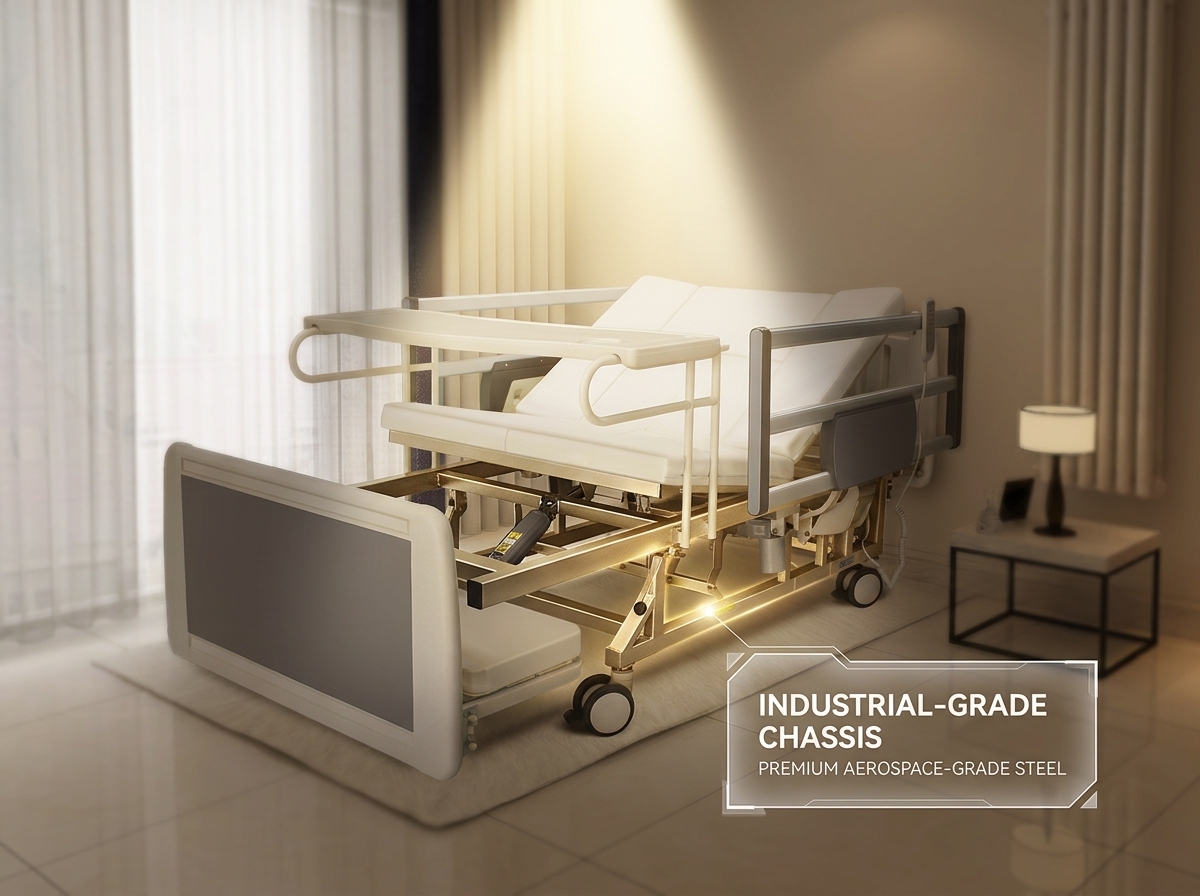

Frame members are 30 x 60 mm rectangular steel tube with wall thickness of at least 1.5 mm, fully welded for rigidity and durability, with all edges deburred for a clean finish and safe handling.
5. Adjustment Range
- Backrest: 0-75° (±5°)
- Leg section: 0-45° (±5°)
- Left and right turning: 0-45° (±5°) each side
6. Manual Push-pull Commode Function
A commode opening sits at the centre of the deck with a quick-open commode door, so the patient can use a bedpan or commode without being lifted or transferred. The door opens and closes in one movement and locks flush with the deck when closed.
7. Guardrails
Guardrail size 710 x 380 mm, two sets, straight up-down type. The crossbeam is a reinforced aluminium alloy extrusion with oxidized surface treatment, framed in ABS with iron brackets. Each rail locks automatically as it reaches the raised position and retracts below the deck surface when lowered. An outer safety switch is fitted to every rail, and the handle profile is shaped for a firm grip so the whole bed can be pushed from the rail.
The rails use a safety release that cannot be opened by pressure applied from inside the bed and only releases under inward pressure from outside. A patient lying in the bed therefore cannot open the guardrail alone and fall out.
8. IV Stand Sockets and Pole
Two IV stand sockets, one at the head end and one at the foot end, with a 20 mm bore. Each socket body is metal stamped with an ABS engineering plastic inner core, which prevents damage to the socket and cuts the rattling noise of a loaded pole. Supplied with a stainless steel two-section four-claw IV stand of 19 mm diameter.
9. Electric Backrest and Leg Lowering

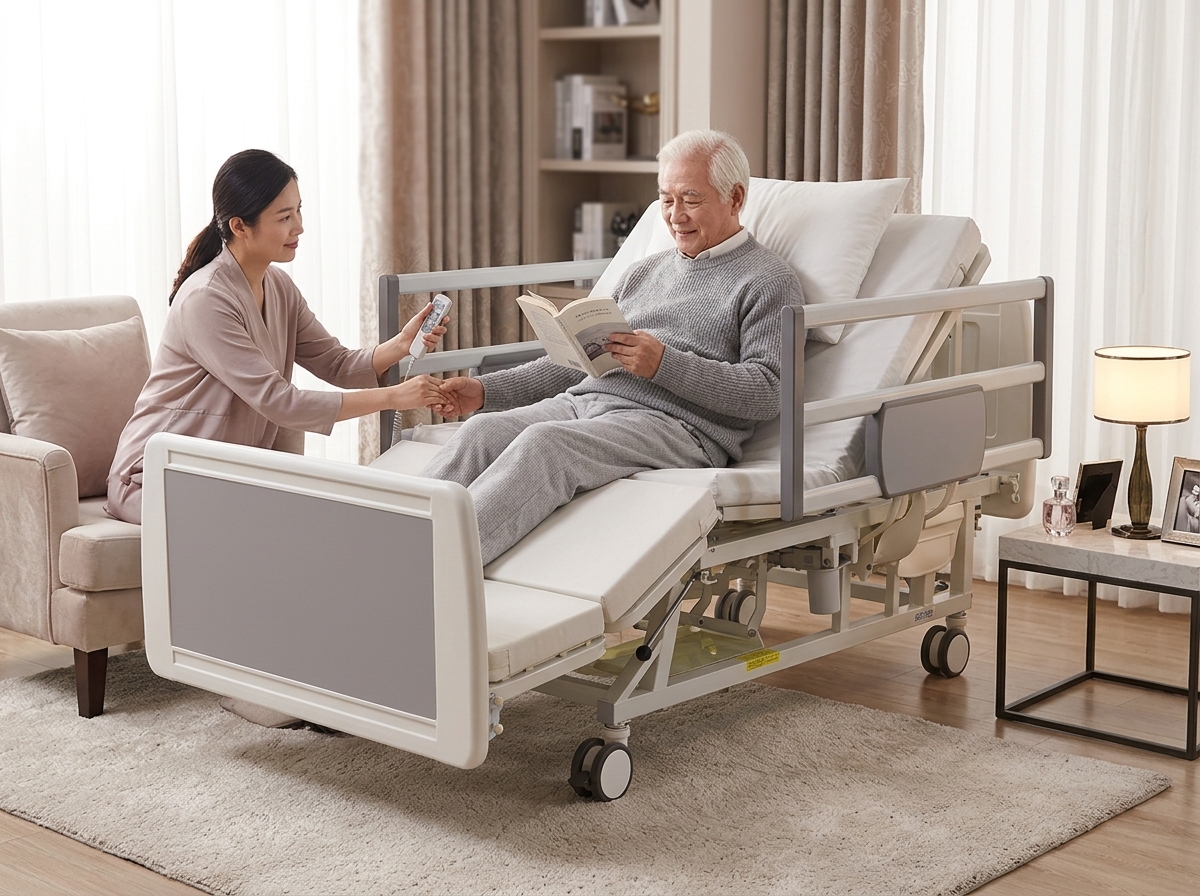

The backrest raises from 0 to 75 degrees by handset, letting the patient sit up for meals, reading or nursing care. The leg section lowers electrically while the patient is seated, following the ergonomics of the knee joint and making it practical to wash the patient's feet in bed. The lowered leg angle adjusts continuously through the working range.
10. Casters
Four ward-duty casters, 125 ± 5 mm, double sided mute type, each with its own brake. Tread is wear resistant, quiet on ward flooring and resistant to thread and hair winding, and the brake holds reliably. Third party SGS test report available.
11. Dining Board
PP dining board, easy to wipe clean and simple to fit and remove for meal service.
12. Metal Surface Treatment
All metal parts pass an environmentally friendly spray pre-treatment line that removes surface impurities and raises surface density to form a dense protective layer, giving internal and external rust protection. Finish is electrostatic powder coating with an environmentally friendly paint that incorporates antibacterial raw material to inhibit bacterial growth on the surface. Third party SGS antibacterial test report available.
13. Mattress
Mattress matched to the bed size, 6 cm thick. Cover is 650D high strength waterproof oxford fabric, neatly tailored, resistant to ageing, waterproof, anti-slip, breathable and antibacterial. Core combines honeycomb sponge and quality palm fibre, which keeps air moving and suits both winter and summer use. Third party test report available.
Technical Specification
| Item | Data |
|---|
| Overall size | 2080 x 980 x 450 mm |
| Bed surface | 10 x 50 mm rectangular flat tube, wall >= 1.5 mm, vent area >= 20% |
| Bed frame | 30 x 60 mm rectangular steel tube, wall >= 1.5 mm |
| Dynamic / static load | 250 kg / 400 kg |
| Backrest load | 150 kg, CMA and CNAS report |
| Backrest angle | 0-75° (±5°), electric |
| Leg section | 0-45° (±5°), electric lowering |
| Turning | 0-45° (±5°) left and right |
| Commode | Manual push-pull, quick open door |
| Guardrail | 710 x 380 mm, ABS frame, aluminium alloy crossbeam, 2 sets |
| IV stand | 2 sockets 20 mm, stainless steel four-claw pole 19 mm |
| Caster | 4 pcs 125 ± 5 mm mute, individual brake, SGS |
| Mattress | 6 cm, 650D waterproof oxford, honeycomb sponge and palm core |
| Surface | Antibacterial electrostatic powder coating, SGS |
Test Reports and Certification
Third party load test report (CMA and CNAS) for the backrest and deck, third party SGS report for casters, third party SGS antibacterial report for the coating, and third party report for the mattress are supplied with each shipment on request. Factory holds CE, ISO 9001 and TUV certification.
Recommended For

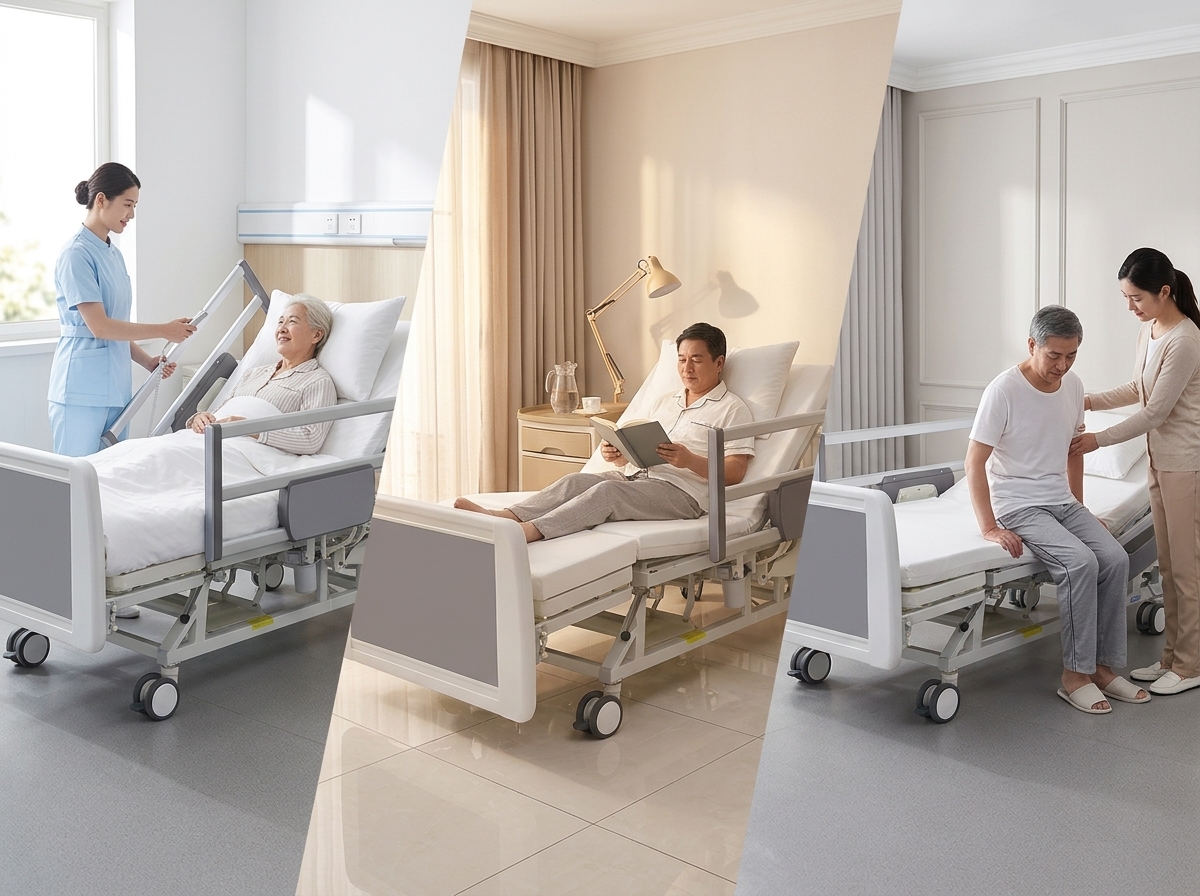

General hospital wards, rehabilitation and long term care units, nursing homes and home care, especially where staff need turning support and in-bed toileting for bedridden patients.
Service
Colour of head and foot boards selectable, OEM logo supported, spare motors, handsets and casters held in stock. One year warranty on motors and handset and three years on the bed frame.
