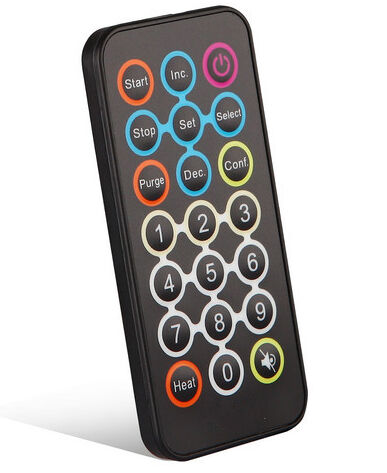

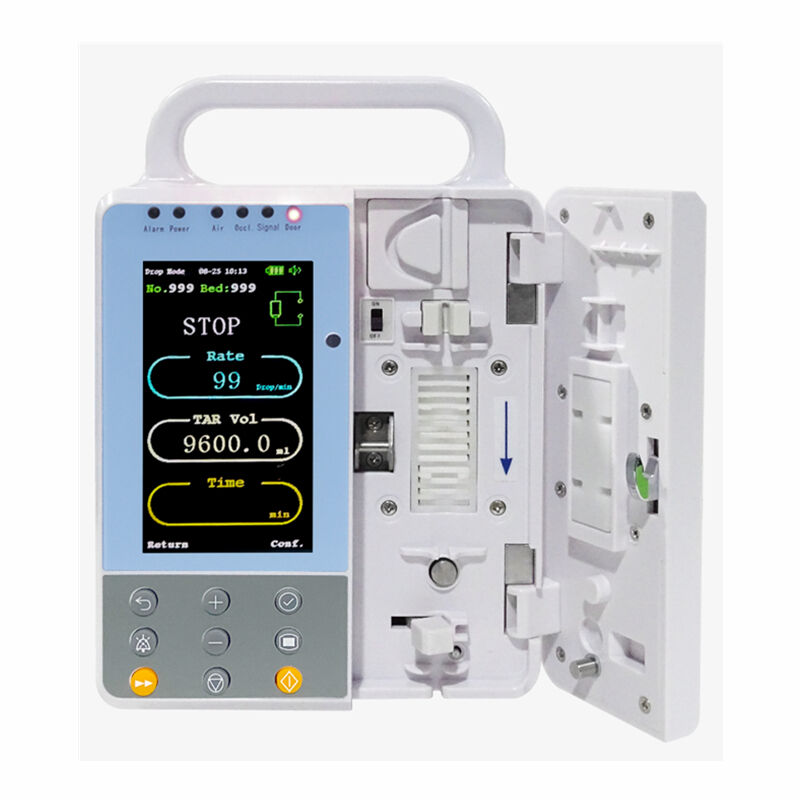

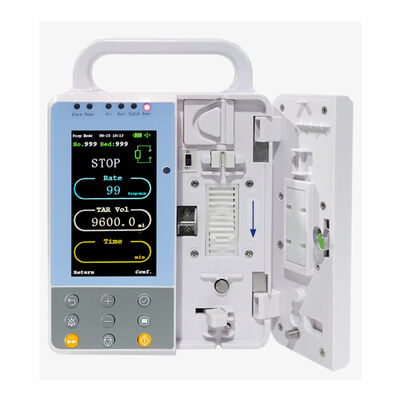

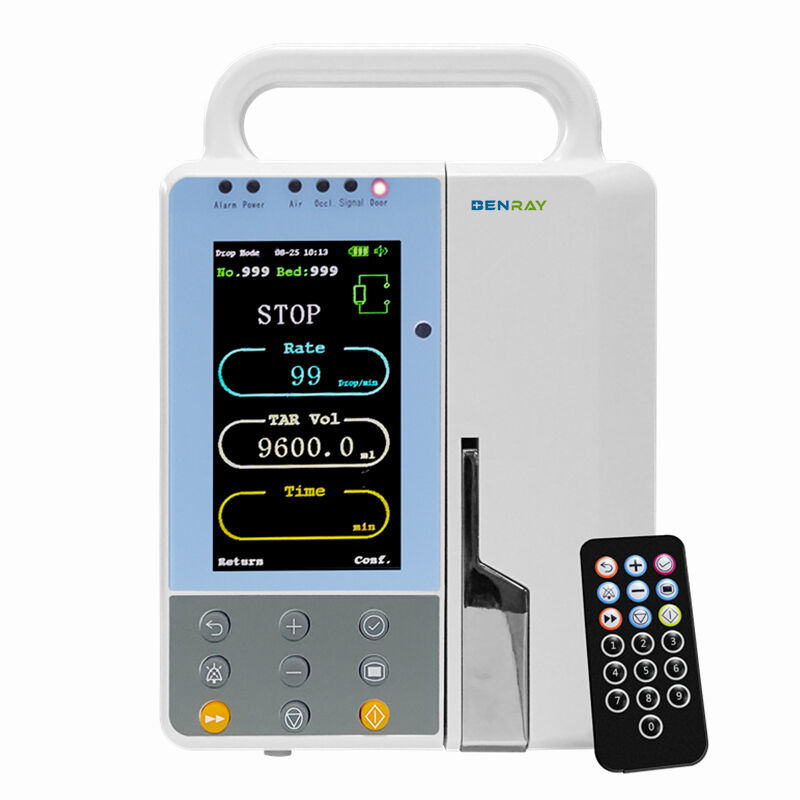

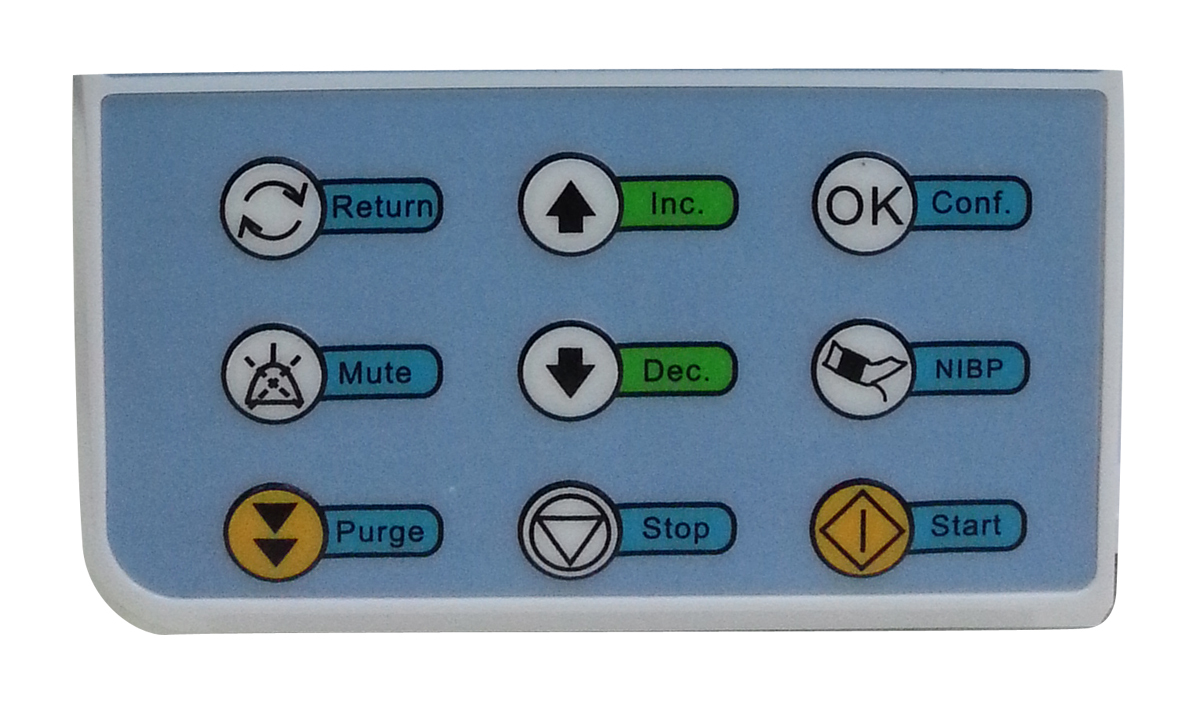

Single-Channel Infusion Pump, Remote Control

Adjustable Volume Rate Range:1~1200 ml/h (when 1~99.9 ml/h,

step: 0.1 ml/h; greater than 99.9 ml/h, step: 1 ml/h)

Flow Precision:Within±3% (using the IV set appointed by the manufacturer or calibrated high quality IV set)

Mechanical precision: within±2%.

Purge Rate:800 ml/h

KVO Rate:1 ml/h (1~300 ml/h);
3 ml/h (greater than 300 ml/h);

Infusion Volume Range: 1 ml~9999.9 ml (step: 0.1 ml)

Maximum Accumulated Volume:9999.9 ml (step: 0.1 ml)

Time Range:1 min~9999 min (step: 1 min)

Occlusion Alarm Threshold: High: 800 mmHg±200 mmHg (106.7kPa±26.7kPa)

Medium: 500 mmHg±100 mmHg (66.7kPa±13.3kPa)

Low: 300 mmHg±100 mmHg (40.7kPa±13.3kPa)

Alarm: Infusion Complete, Empty, Faulty Signal, Misoperation,
Occlusion, Door Open, Air Bubble, Low Battery, Setting Error, AC power off, Idle.

Air Bubble Detector: Method: ultrasonic wave, sensitivity: ≧25 μL

Fuse: F1AL/250V ("F" indicate fast,"L" indicate low breaking capacity),
2 pcs (installed inside pump).

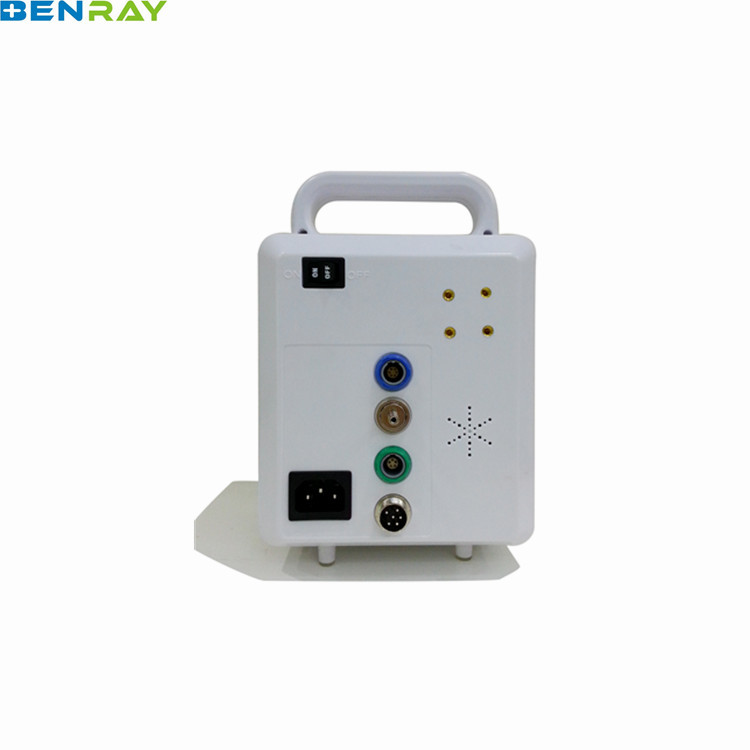

Power Supply: AC 85~265V, 50/60Hz;

Internal Battery:11.1V rechargeable li-ion battery. Capacity:≧2000mAh;
the pump can work more than 4 hours at the flow rate of 25 ml/h after charging for 8 hours (Medium rate specified by GB 9706.27-2005).

Power: ≦40VA

Size: 188 mm(L)*198 mm(W)*228 mm(H)

Weight: 2.2KG
