| Power Source: | Electric | Warranty: | 1 Year |
|---|---|---|---|
| After-sale Service: | Online Technical Support | Material: | Metal, Steel, Steel |
| Shelf Life: | 1years | Quality Certification: | CE, ISO |
| Instrument Classification: | Class II | Safety Standard: | None |
| Product Name: | Electric-motor Operating Table | Overall Dimension Of Table: | 2100*480*750-1000mm |
| Application: | OT Room | Certificate: | CE ISO |
| MOQ: | 1 Pc | OEM: | Availabe |
| Packing: | 150*78*103cm | N.W: | 261KG |
| Highlight: | stainless steel hospital operating table,electric motor surgical equipment,metal operation table with warranty |
||

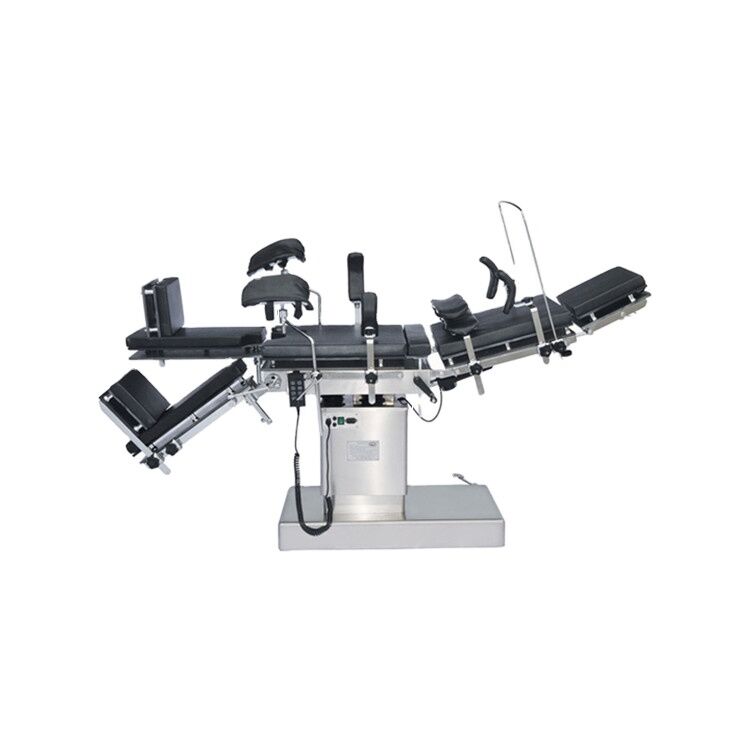

Product Name | Electric-motor operating table |
Model Number | BR-OT015 |
Main feature: | with emergency power,suitable for x-ray |
Specification: | Overall Dimension of table:2100*480*750-1000mm |
Dimension of section | Head Section:280×325mm; Back Section:500×480mm; Seat section:530×480mm; Leg Section:510×236mm; Foot Section:180×273mm; Kidney Bridge:100×480mm |
Range of movements | Reversed Tendelenburg………………≥200 Trendelenburg…………………………≥150 Lateral tilt……………………………≥150 Head Section Raised from the horizontal…………… ≥450 Head Section lowered from the horizontal……………≥900 Leg Section Lowered from the horizontal……………≥900 Leg Section opened……………………………………≥900 Back Section Raised from the horizontal……………≥450 Back Section lowered from the horizontal……………≥150 Kidney Bridge Elevated………………………………≥100mm Safe Working Load…………………………………135kg Lifting speed…………………………………………4~16mm/s Foot and leg board board into a horizontal or vertical. IPX4 Ingress Protection:IPX4 Power: AC220V,50Hz Internal electric source:(DC)24V Battery capacity ≥ 2.4AH Device safety sort I B |
Packing | 150×78×103cm, N.W.:261KG, G.W.:325KG, 1pc/plywood case |
