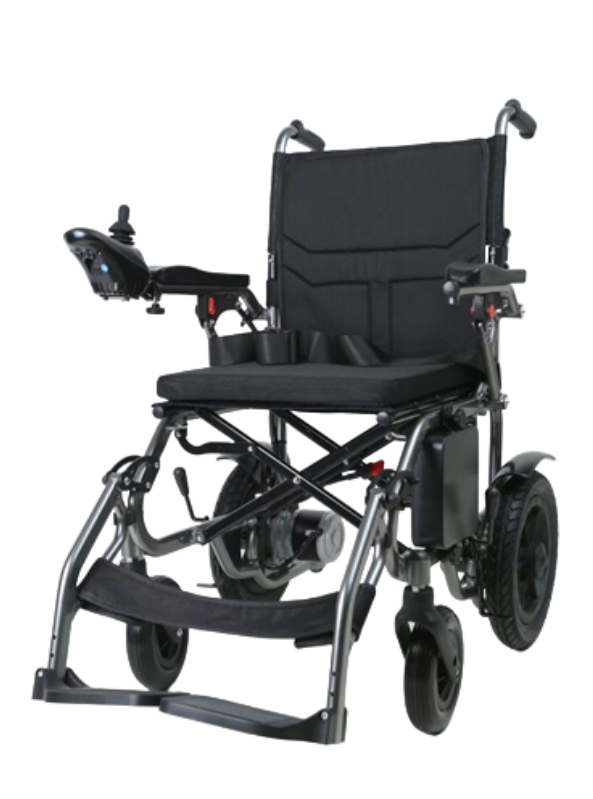

Aluminum Alloy Electric Wheelchair (Brushed Motor, Lithium Battery, Foldable)

Aluminum Alloy Electric Wheelchair (Brushed Motor, Lithium Battery, Foldable)
DYW-XT-2-C
Key Parameters:

Overall Dimensions (L×W×H): 100×61×95 cm

Seat Width: 46 cm

Seat Height: 53 cm

Seat Depth: 42 cm

Backrest Height: 45 cm

Armrest Height: 22 cm

Front Wheels: 8-inch

Rear Wheels: 12-inch

Load Capacity: 100 kg

Net Weight (without battery): 20 kg

Battery Weight: 2 kg

Gross Weight: approx. 22 kg

Package Dimensions: 74×41×76 cm

Configuration:

Aluminum alloy frame with metallic baking paint finish, double cross-tube support

Breathable mesh seat and back cushion, optional independent top cushion for enhanced comfort and airflow

Flip-back armrests with high-quality PU arm pads for elbow support

Foldable backrest

Swing-away leg rests with adjustable footplate height

8-inch widened PU front tires with plastic swivel forks

12-inch pneumatic rear tires with plastic hubs

Extended lever hand brakes for effortless operation

Drive system: Permanent magnet DC motor (MY1016Z-250W24V, 120r/min)

Sensitive 24V/35A controller with adjustable speed, max speed 6km/h

12Ah lithium battery providing range not less than 15 km

Charger: 24V/2A, Input: 220V 50Hz 55W, Output: 29.6V 1.8A
