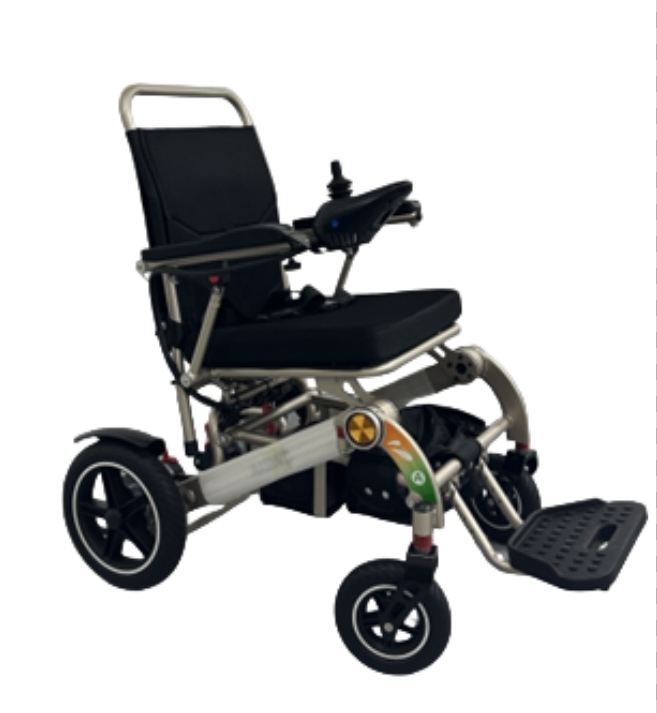

Low Backrest Folding Electric Wheelchair

Low Backrest Folding Electric Wheelchair

DYW-XT-2-B

Removable and washable breathable mesh seat and backrest

Flip-up armrests

Adjustable footrest with 90° vertical rotation

Polyurethane foam pedal pads

Front wheels: 8-inch PU solid tires with aluminum alloy hubs

Rear wheels: 10-inch PU solid tires with aluminum alloy hubs

Intelligent slope-holding controller

Electrically controlled brake motors for electric wheelchairs

Equipped with anti-tip wheels

Product Parameters:

Overall dimensions: 107 × 59 × 95 cm

Seat front height: 530 mm

Backrest height: 500 mm

Width between armrests: 440 mm

Folded dimensions: 60 × 32 × 78 cm

Battery: 24V 12Ah lithium battery

Charger: 24V/2A

Rear wheels: 12-inch PU solid tires with aluminum alloy hubs

Front wheels: 8-inch PU solid tires with aluminum alloy hubs

Frame material: Aluminum alloy

Seat width: 440 mm

Armrest height: 210 mm

Motor power: 250W × 2 (electrically controlled brake)

Controller: 24V/45A

Safe load capacity: 100 kg

Gross weight (with battery): 30 kg

Net weight (without battery): 22.8 kg

Maximum speed: ≤6 km/h

Braking distance on level ground: ≤1.5 m

Braking distance on maximum safe slope: ≤3.6 m (6°)

Slope parking capability: 9°

Static stability: ≥9°

Dynamic stability: ≥6°

Obstacle clearance height: ≥40 mm

Trench crossing width: 100 mm
