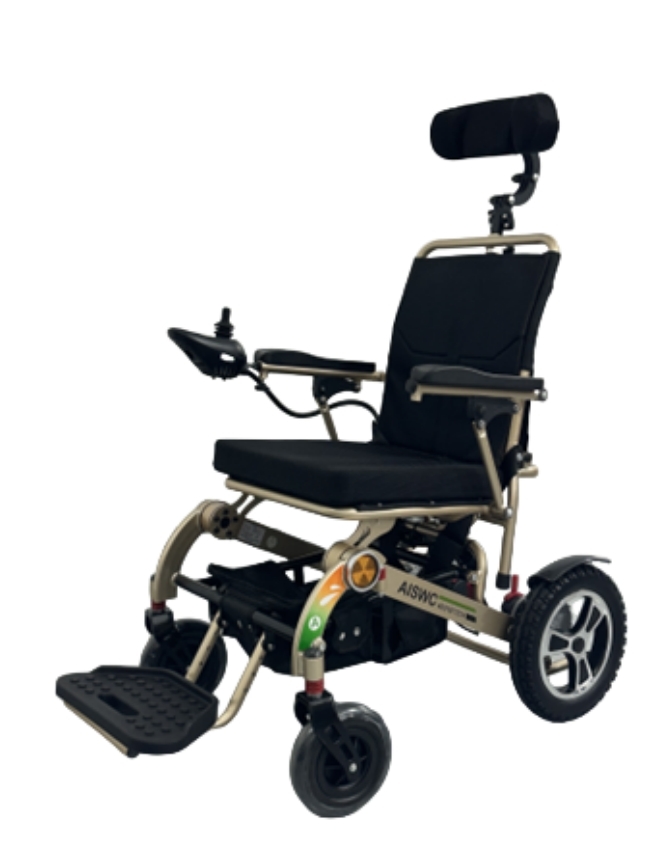

Electric Reclining Folding Wheelchair

Electric Reclining Folding Wheelchair
DYW-XT-2-B
Featuring an adjustable footrest with 90-degree rotation, polyurethane foam pedal pads, 8-inch PU solid front wheels and 12-inch PU solid rear wheels (both with aluminum alloy hubs), an intelligent slope-holding controller, electrically controlled brake motors, and anti-tip wheels.

Specifications:

Overall Dimensions: 107 × 59 × 95 cm

Seat Height: 530 mm

Backrest Height: 500 mm

Armrest Width: 440 mm

Folded Dimensions: 60 × 32 × 78 cm

Battery: 24V 12Ah Lithium

Charger: 24V/2A

Rear Wheels: 12-inch PU solid tires, aluminum alloy hubs

Front Wheels: 8-inch PU solid tires, aluminum alloy hubs

Frame Material: Aluminum alloy

Seat Width: 440 mm

Armrest Height: 210 mm

Motor: 250W × 2 (electrically controlled brake)

Controller: 24V/45A

Max Load: 100 kg

Gross Weight (with battery): 30 kg

Net Weight (without battery): 26 kg

Max Speed: ≤6 km/h

Braking Distance (flat surface): ≤1.5 m

Braking Distance (6° slope): ≤3.6 m

Slope Parking Capacity: 9°

Static Stability: ≥9°

Dynamic Stability: ≥6°

Obstacle Clearance: ≥40 mm

Trench Crossing: 100 mm

Gradeability: ≥6°

Minimum Turning Radius: 1100 mm

Theoretical Range: ≥15 km
