Micro-plate washer

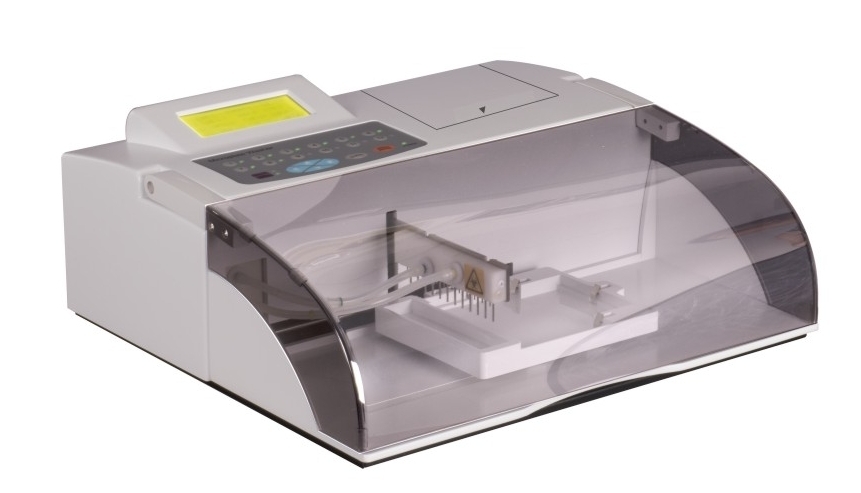

Microplate Washer
SK2000B

Feature:

● Interchangeable manifolds for 8- and 12-well strips

●One or more strips of ELISA Plate washing keyboard choice directly

● Minimal residual volume (<1μL/well)

● Dispense precision Cv<2%

● Detachable ELISA Plate pallet, convenient for the pallet clearing and sterilization

● Cleaning head 5-locations location adjusted,

● Shaking or soak time programmed.

● Automatic waste and lotion and distilled water liquid warning

●Built-in internal-temperature cyclic ELISA Plate pallet incubator(patent)

●temperature precision 37± 0.3℃

Specification:

Micro-plate Types: 48 / 96-well U-/V- / Flat-bottom plates or strips
Residual Volume: ≤ 1μl / well typical
Dispense volume: 50μl-950μl, adjustable
Washing Cycles: 1-99, optional
Washing Mode: 1-12, rows and ranks selectable

Soaking Time: 0-999s, adjustable

Shaking Time: 0-999s, adjustable

Display: Large LCD

Channel: 2 channels for washing liquid, 1 channel for waste liquid

Memory: Up to 100 programs can be stored

Interface: RS232

Power Supply: 220110VAC ± 10%, 5060Hz

Temperature:  5℃-30℃ wet≤90%

Dimension: 430mm (L) × 380mm (W) × 120mm (H)

Net Weight:  12Kg
