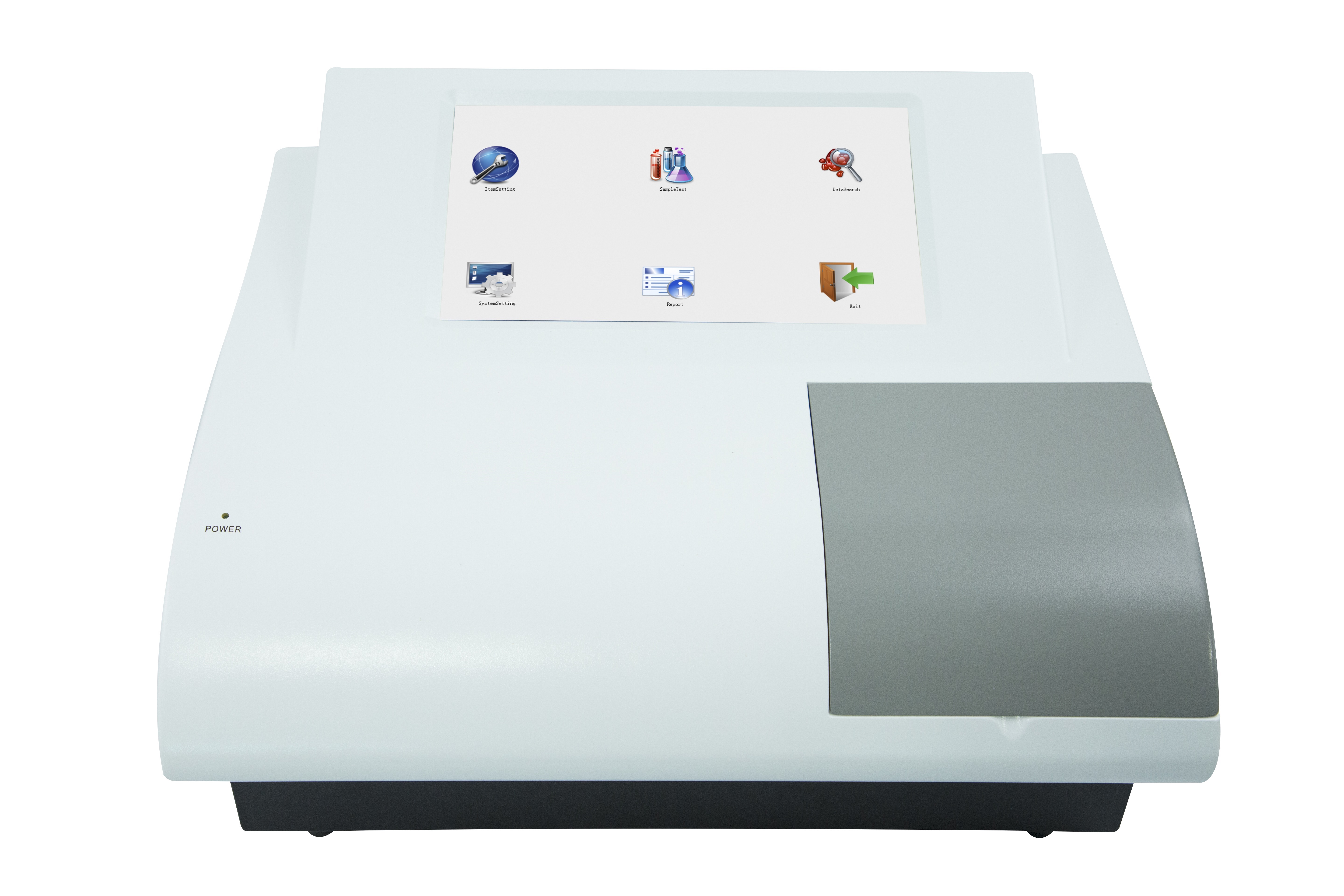

Elisa reader

Elisha Reader
SK201

Specification sheet

Feature

Windows operation interface, figure button, mouse operation, touch screen.

96-well plate, multiple tests in the single plate.

Arrangement of Test item in micro-plate can be store and re-use

Parameter can be modified and stored

Plate shaking, speed and time adjustable

Open system, test item and parameters can be added or modified.

Large storage for 1000 test item and 1,000,000 results

10.4 inch color touch LCD

Printing comprehensive report, include hospital and patient information and test results

Built-in portable computer, easy to use.

Specifications

Microplate types: 96-well plate(U,V,or plat-bottom)

Wavelength: 405nm, 450nm, 492nm, 630nm, wavelength accuracy < 2nm

Reading range: 0.000-4.000 Abs

Measurement range: 0.000-3.000Abs

Light source: LED, >100,000 hours

Measuring system: 8-channel optical system

Test mode: End-point, kinetic, Multi-wave analysis

Resolution <1% or ±0.001Abs

Stability: <±0.005Abs/10min

Well Coincidence:≤0.015A

Linearity: r > 0.999

Repeatability: < 0.3%

Reading speed: 5s single wavelength , 10s double wavelength

QC: West guard Multi-rule, automated QC alert.

Self-Checking function: Self-checking and calibration function.

CPU: High-speed CPU

Printer: External jet printer, multi-form patient report.

Interface: RS232 interface, USB.
Power supply: 220VAC 15% or 110VAC 15%50-60Hz 100W
Work environment: Temp 5℃- 40℃；Humi ≤85%;
Machine Dimension: 44CM*37CM*24CM
Weight: 13 KG
