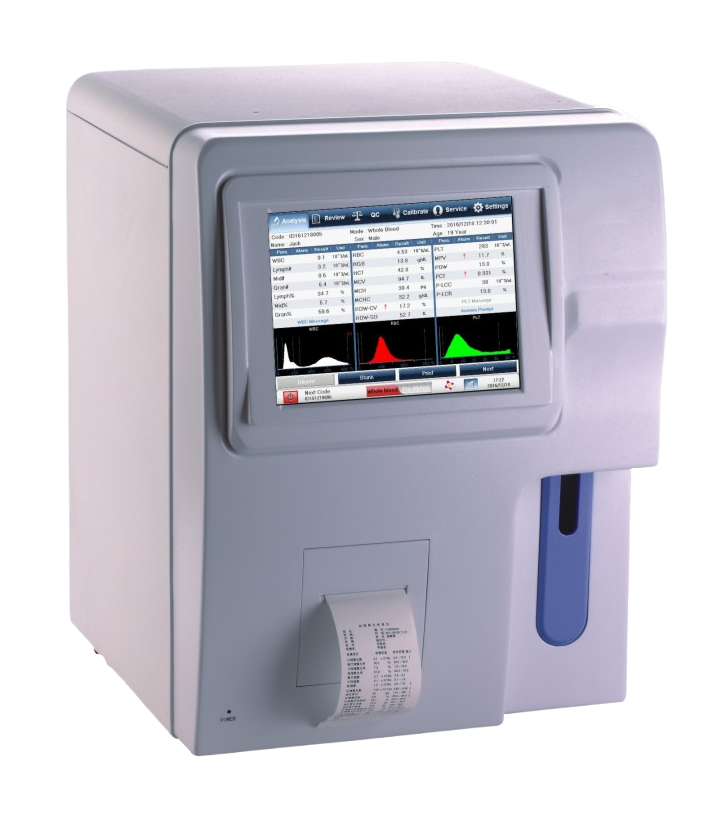

Full-auto hematology analyzer

Full-auto hematology analyzer
SK9600Vet

Specification sheet

● 3-part differentiation of WBC, 24 parameters, double channels counter

● 8.4 inches color touch screen

● Waste full alarm automatically

● external printer such as Epson LQ-630k, Epson LQ-350, Epson M200/M201, HP P1007,HP 1020Plus

● Large storage capacity: up to 60 samples test per hour

● Electrical resistance for counting and SFT method of hemoglobin

● Low sample consumption : venous 14 uL, pre-diluted 20 uL for twice testing one time

● Windows operation system graphical buttons mouse and keyboard operation

● Double convolution and intelligent fitting

● Automatic diluting , Mixing , rinsing and clog clearing

● Automatically sample probe cleaning (inside and outside)

up to 100,000 samples +3 histograms

● Internal thermal-sensitive printer.

● RS232 interface, PC connecting

Main Technical Specifications

Animal Type: cat, dog, horse, mouse, rat, rabbit, pig, cow, buffalo, monkey, camel, sheep, goat, and 3 user-defined animal settings

Methodology: Electrical resistance for counting, hemoglobin cyanide method and SFT method for hemoglobin

Parameter: 3-part differentiation of WBC; 21 parameters and 3 color histograms (WBC, RBC, PLT)

Work mode : double Channel + unique Hemoglobin test system

Sample volume: 14μL for Venous mode, 20μL for pre-diluted mode

Throughput: More than 60 samples per hour, operate 24 hours per day, auto sleeping and waking-up functions

Storage: up to 100,000 sample results including histograms can be stored, convenient for inquiry and management of history data

Operation langue: English, French, Spanish, Portuguese, Indonesian, Russian, Arabic, Japanese, Korean

QC control : X-B, L-J, X , SD, CV %

Reference Value Setting : Male , Female, Children, Neonate

Input / output : RS232, parallel printer and keyboard

Print : Graphic thermal printer with various printing format, optional external printer

Temperature : 18℃ - 30℃,wet ≤ 10-90%

Power supply : 220 V ±22 VAC, 50±1Hz

Dimension : 33 CM ( L ) * 38 CM ( W ) * 43 CM ( H )

Weight : 20 KG

Precision

Parameters linear range CV %

WBC( 10 ⁹ / L ) 0.0 - 99.9 ≤2%

RBC ( 10¹² / L ) 0.0 - 9.99 ≤1.5%

MCV ( fL ) 40-150 ≤0.5%

PLT ( 10 ⁹ / L ) 0-999 ≤4.0%

HGB( g/L ) 0.0-300.0 ≤1.5%

Parameters

WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB,HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT, P-LCR, P-LCC

3 –Histograms : WBC,RBC and PLT
