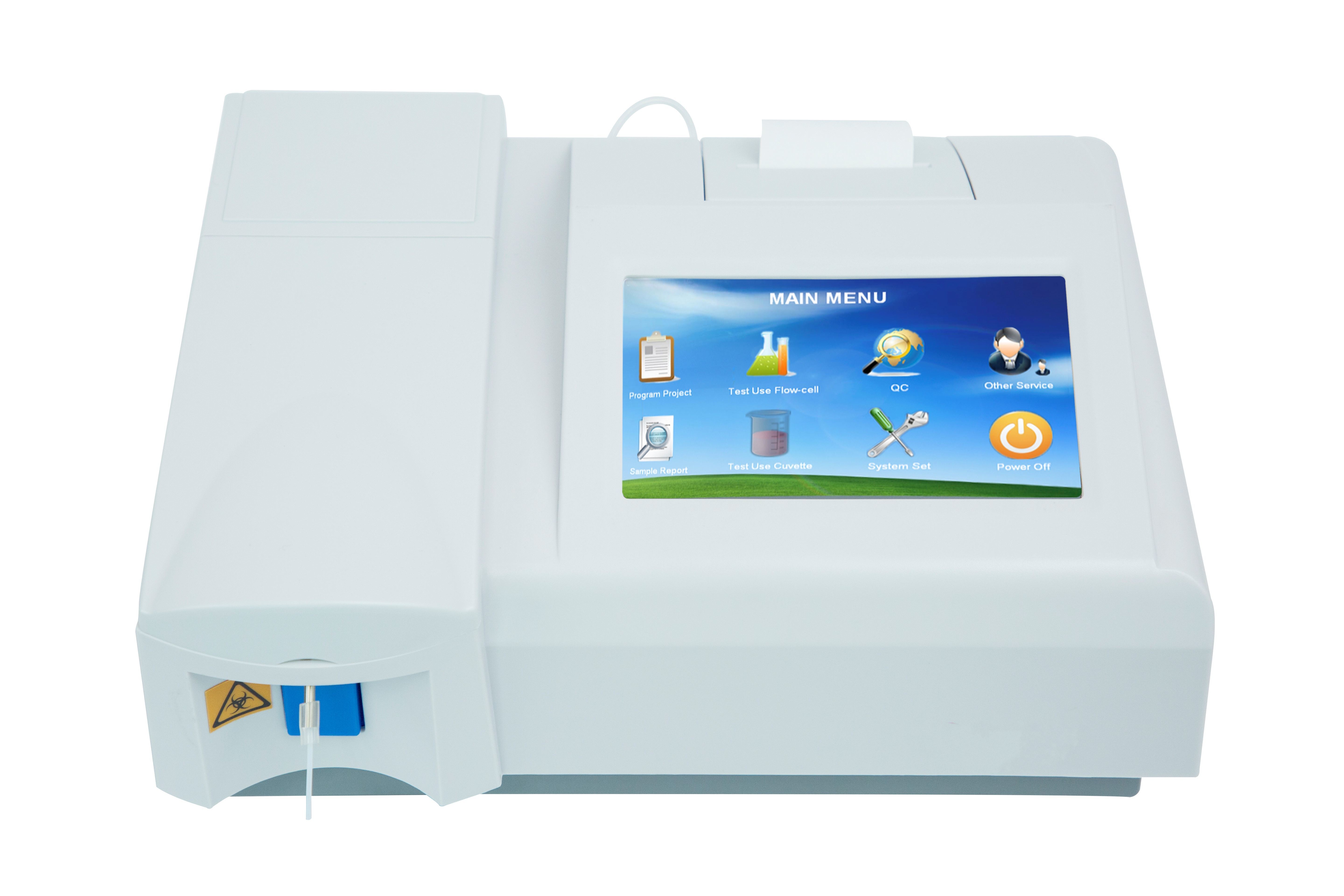

Semi-auto chemistry analyzer(human or vet)

Feature

7 inch Color LCD , Touch screen

Flow cell and Cuvette test mode compatible

Real time curve showing

7 wavelength, 80 test item pre-programmed

Memory for 10,000 sample results and 150 test items

Light source hibernate function making lamp life longer

RS232 interface, PC connecting

Specification

Test mode: Kinetic, End point, Two point, AbsorbanceWavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position

Wavelength precision: ±2 nm, width ≤ 10nm

Absorbance range: 0~4.500 Abs

Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs

carry over: < 1%

Repeatability CV: < 1%

Incubator: 37℃,30℃,25℃,Precision : ±0.1℃

Sample volume: 0~3000 uL (≥500uL recommend)

Data Storage: ≥10000

Quality control curve: ,SD,CV%,L-J quality control curve for every test item

Flow cell: 32 uL quartz glass, 10 mm

Lamp: Philips 6V 10W Halogen Lamp with long life

Screen: 7 inch color LCD

CPU: ARM series high speed micro CPU

Printer: Internal thermal sensitive printer

Interface: RS-232

Work Environment: Temperature 0℃ ~ 40℃, Humidity: ≤80%

Power supply: 100~240VAC,50-60Hz,100VA

Dimension: 340(L)*270(W)*160(H)

Weight: 5 kg

Usual test list

Liver function:

ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh₃

Renal function :

BUN CRE UA URE CO2-CP γ-GT

Lipids:

T-CHO TG HDL-C LDL-C

Cardiac function:

CK CK-MB LDH

Immune proteins:

IGA IGG IGM C3

Others:

GLU HGB AMS
