| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BENRAY |
| Certification: | CE,ISO,TUV |
| Model Number: | BR-HR04 |
| Minimum Order Quantity: | 1 |
| Price: | USD650/set ~ USD800/ set |
| Packaging Details: | plywood box |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 set / month |
| Product Name: | Head Rack | Power: | Manual |
|---|---|---|---|
| MOQ: | 1 Set | Delivery Time: | 5-7 Days |
| Warranty: | 1 Year | Back And Forth Range: | 350 Mm |
| Rotational Tilt Angle: | ≧75 ° | Sinistrodextral: | 400 Mm |
| Highlight: | Universal Operating Table Head Rack,Surgical Table Head Rack,Multi Function Operating Table Head Rack |
||

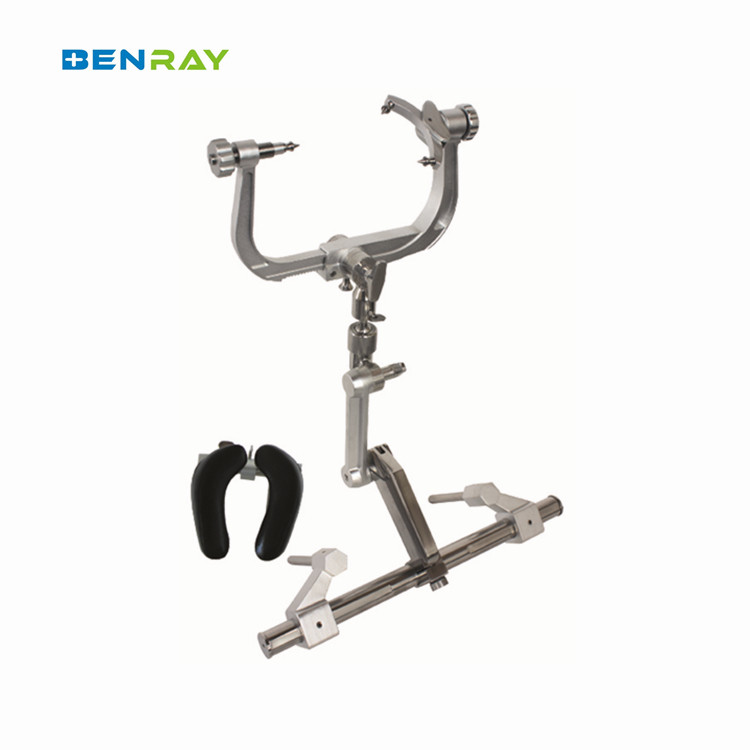

Multi Purpose Head Rack
Model :BR-HR04
Function and usage:
1.This set rack is a kind of specialized equipment, which matches with the brain/skull operation.
2.This skull operation rack can adjust at will according to the need for operations, which can be back and forth, swing from side to side, up and down movements.
3.It also can achieve the best in the first place and position, which facilitate the operation and management of anesthesia for operation and play a reliable guarantee Role.
4.It is an ideal tool for neurosurgery.
Structure and performance:

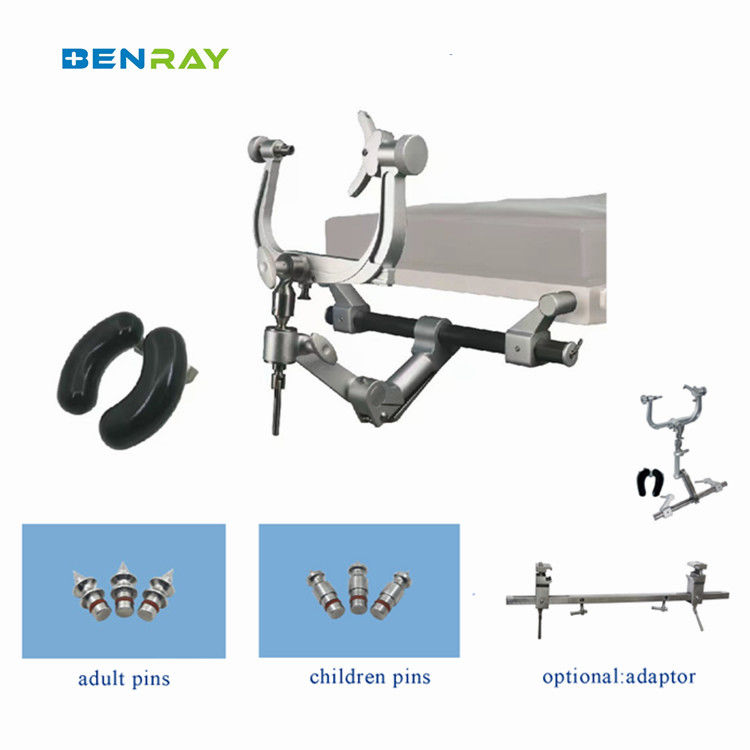

1. One complete Set of instrument is composed of the base, skull fixture rack and U-Shaped head bracket.
They can be assembled at will according to operation needs.
2. Instrument adopts crank-link structure, and locking adopts lever handle fasten, which are safe and reliable.
3. One complete Set of instrument with reasonable design, compact overall structure, small cubage, which increased the scope of operation activities and reduced the doctor's physical.
4. Easy to install and adjust, which reduces the time of preoperative preparation.
Teachnical Parameters
| Product | Multi-purpose head rack |
| Model | BR-HR04 |
| Back and forth range | 350 mm |
| Sinistrodextral (swing from side to side) range | 400 mm |
| Up and down movement range | 350 mm |
| Rotational tilt angle | ≧75 ° |
| Installation distance between centers adjustment range | 190 ～590 mm |
| Adult Pin | 3 pcs |
| Children Pin | 3 Pcs |
| Adaptor | Optional |
| Package | 75*52*45cm , GW.: 17KG |
