| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BENRAY |
| Certification: | CE,ISO,TUV |
| Model Number: | BR-OT019C |
| Minimum Order Quantity: | 1 |
| Price: | USD1080set ~ USD1800/ set |
| Packaging Details: | plywood box |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 set / month |
| Product Name: | Universal Manual Operating Table | Power: | Manual |
|---|---|---|---|
| Demensions: | 2100*480 Mm | Function: | 7 Function |
| Lateral Tilt: | ±20° | MOQ: | 1 Set |
| Delivery Time: | 5-7 Days | Warranty: | 1 Year |
| X-ray: | Optional | Package: | Plywood Box |
| Highlight: | Manual Head Control Operating Table,Surgical Operating Table with 7 Functions |
||

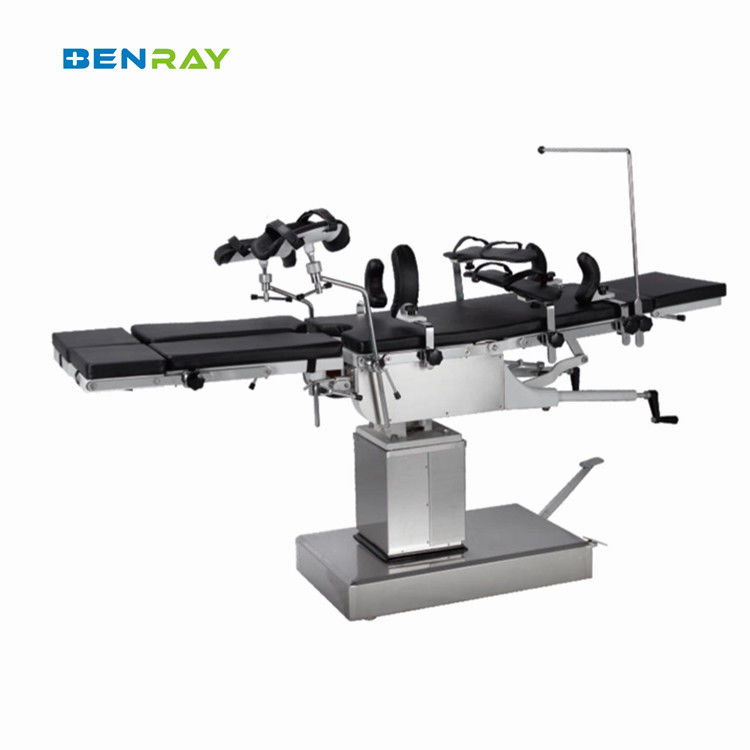

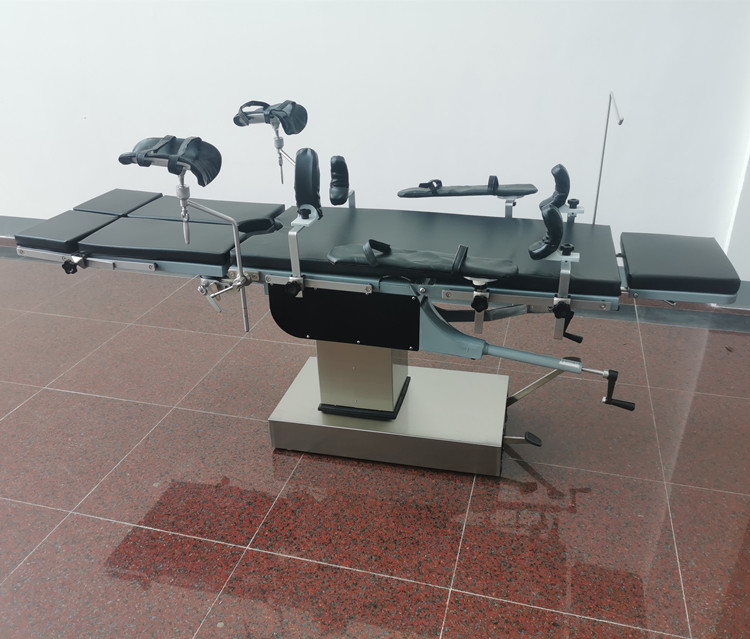

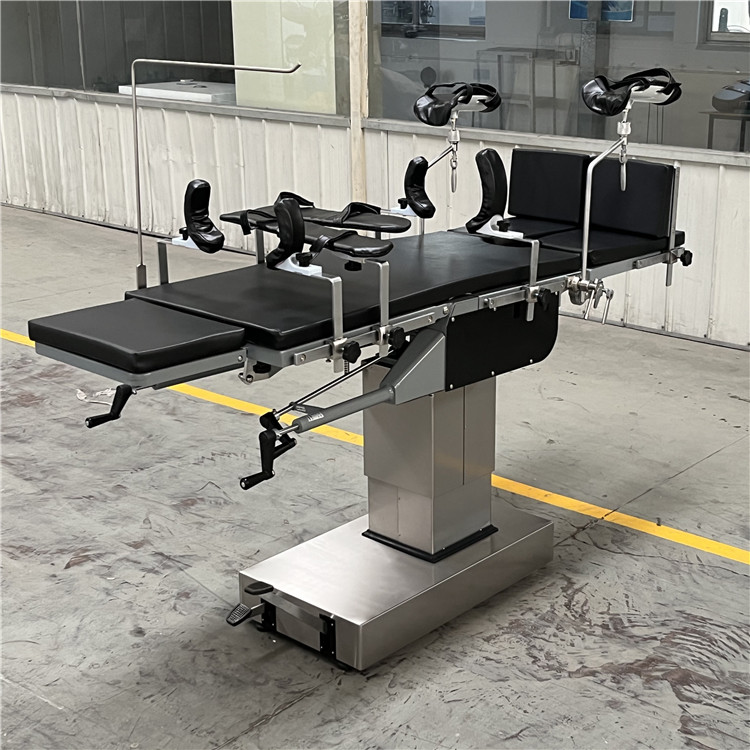

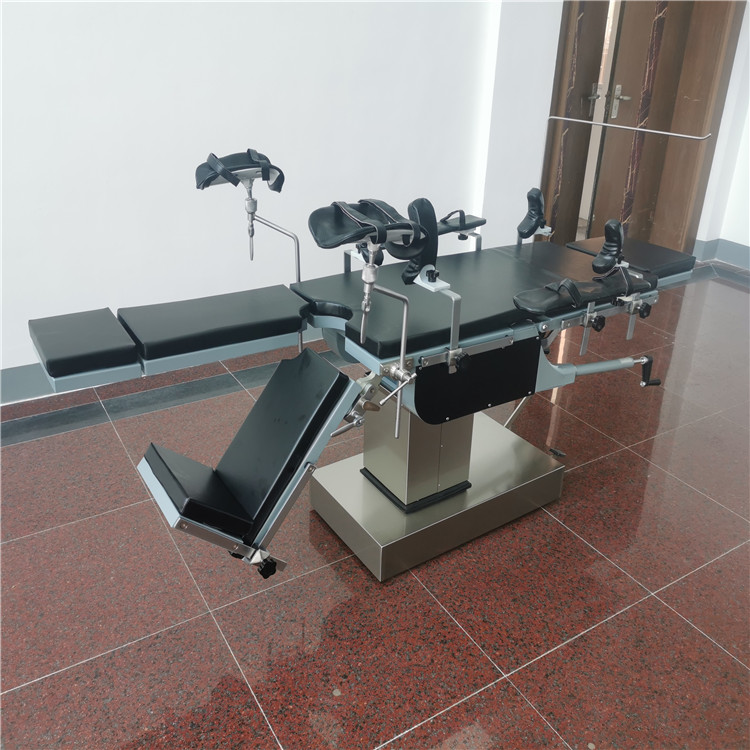

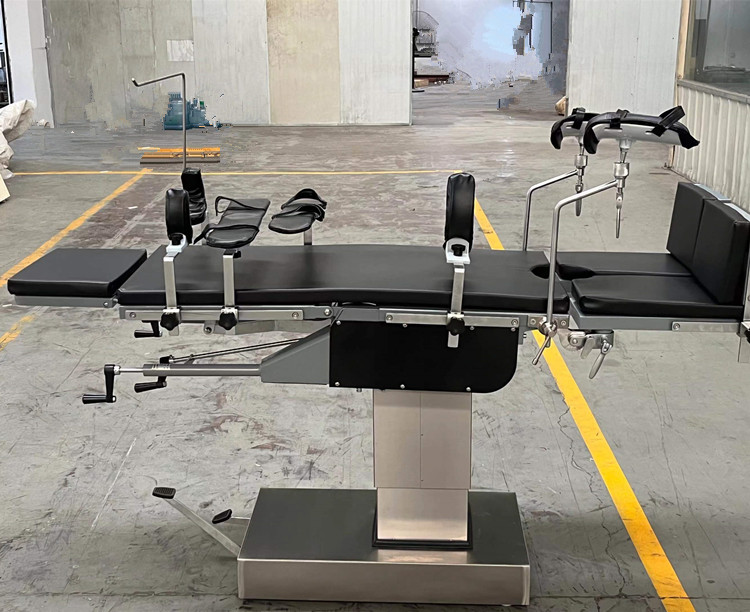

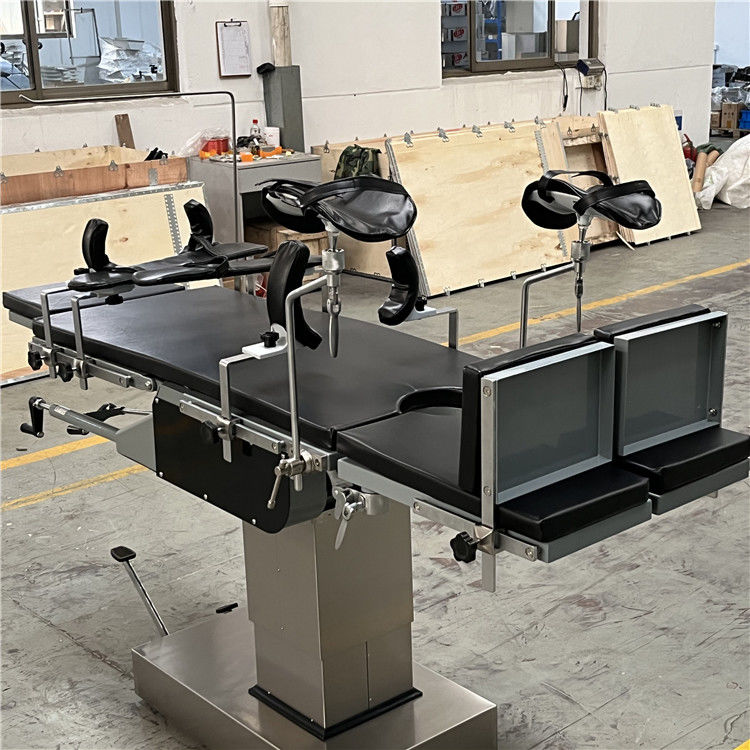

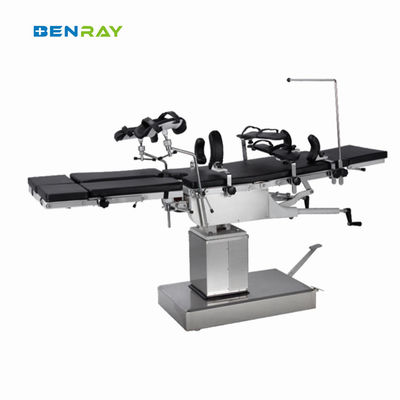

Multi Function Universal Head Controlle Manual Operating Surgical Table
Model :BR-OT019C (X-ray /C arm )
Separate Foot Board
Feature
●This table is used for general surgery department,eart renal, orthopedics, gynecology and urology.
● It is a manual hydraulic operating table,using foot pedal to adjust the height.
● The table panel frame is spray-coated, the column and basement is #304 stainless steel.
● Operating table has guid rails which can carry accessories at both ends.
● Back plate adjustment by handwheel under the head plate.
● Lateral tilt and trendelenburg adjustment by hand crank under the head plate.
● Kidney bridge rising adjustment by hand crank at the side of the table.
●All sections fit with mattress, detachable for easy cleaning.
Teachnical Parameters
| Product | Multi Function Manual Operating Table |
| Model | BR-OT019C |
| Demensions | 2100*480 mm |
| Functions: (manual ) | |
| Height Adjustment | 800-1050 mm |
| Trendelenburg | ±25° |
| Lateral Tilt | ±20° |
| Back Section Adjustment | +80°/-20° |
| Head Board Adjustment | +45°/-90° |
| Leg Board Adjustment | -90° |
| Build-in Kidney Elevator | 0-120 mm |
| Longitudinal moving | No |
| X-ray / C arm Examination | Available |
