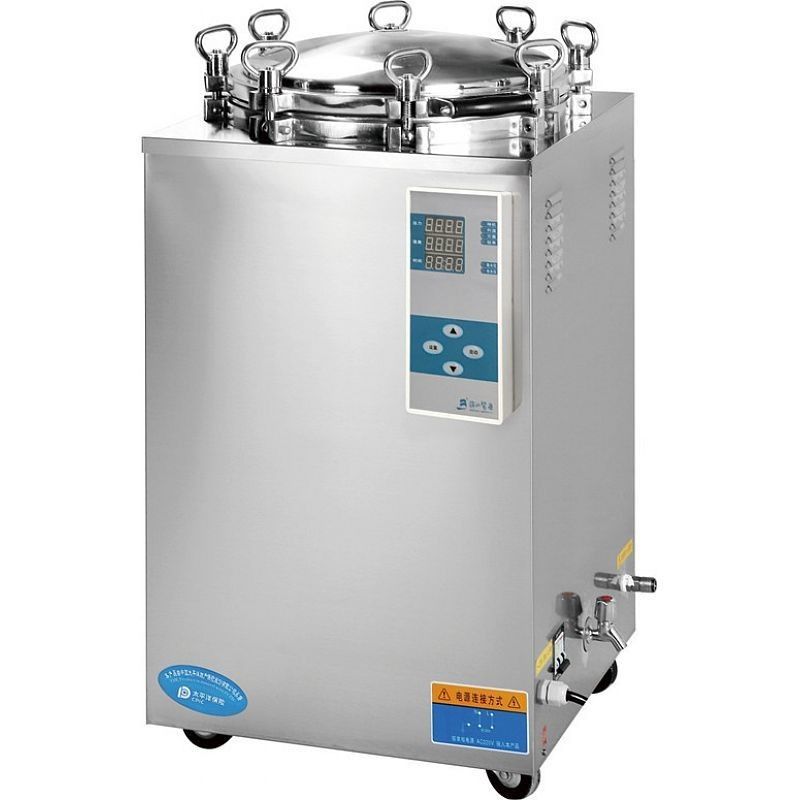

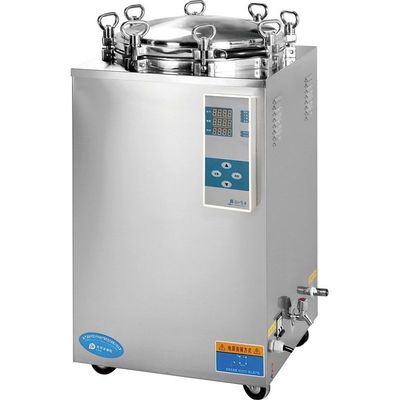

VERTICAL PRESSURE STEAM STERILIZER

MODEL

Technical Data

BR-120LD

BR-150LD

Chamber volume

120L(φ480×660)mm

150L(φ510×740)mm

Working pressure

0.22MPa

Working temperature

134℃

Max. working pressure

0.23 Mpa

Heat average

≤±1℃

Timer scope

0～99min

Adjustment of temperature

105～134℃

Power

6KW/AC220V.50Hz

6KW /AC220V.50Hz

Overall dimension

600×640×1140(mm)

670×690×1130(mm)

Transport dimension

730×730×1270(mm)

760×760×1270(mm)

G.W/N.W

125Kg/ 100Kg

135Kg/110Kg
