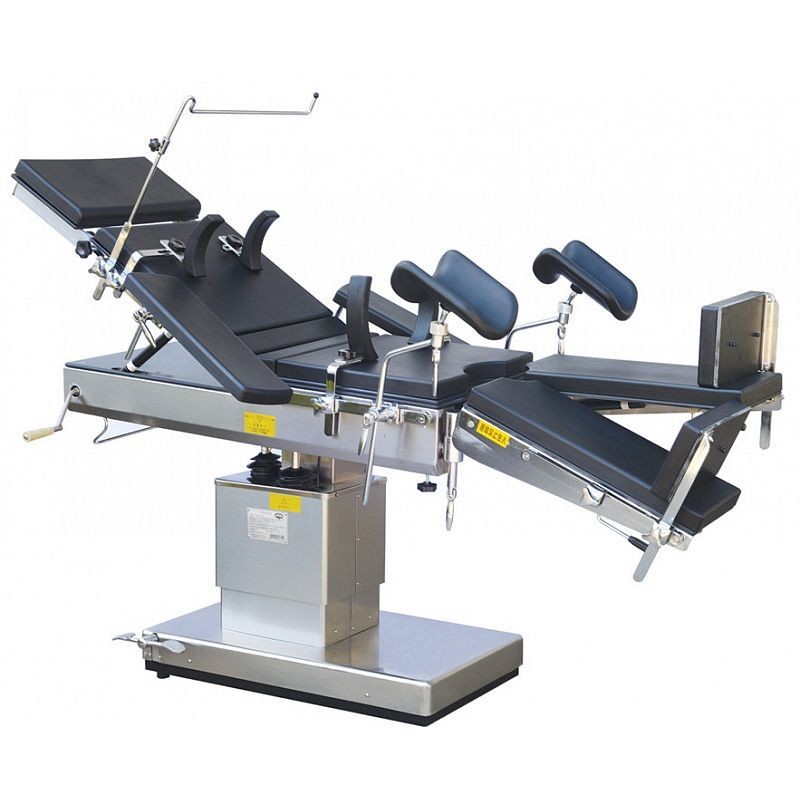

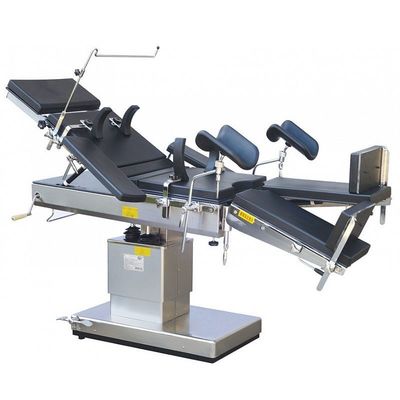

Main feature: longitudinal movement 400mm,with emergency power,suitable for x-ray and c-arm,besides backrest upward and footrest downward are gas spring operated, all other movement are controlled electrically
Overall Dimension of table:2100mm*500mm*750-1000mm Dimension of section: Head Section:250×500mm;Back Section:545×500mm;Seat section:450×500mm;Leg Section:600×240mm;Kidney Bridge:75×500mm;Foot Section:180×273mm Range of movements: 1)Reversed Trendelenburg:≥20°Trendelenburg:≥15° 2)Lateral Tilt:≥15° 3)Backward and Forward Movements: ≥400mm 4)Head Section Raised from the horizontal: ≥45° 5)Head Section lowered from the horizontal:≥90° 6)Back Section Raised from the horizontal:≥45° 7)Kidney Bridge Elevated:≥80mm 8)Leg Section Lowered from the horizontal………………………………≥90° 9)Leg section opened…………………………………≥90° 10)safe working load……………………………………………………135kg 11)Lifting speed…………………………………………………………4～16mm/s 12)Foot and leg board board into a horizontal or vertical. 13)Device safety sort I B 14)Ingress Protection:IPX4 15)Power:(AC)220V,50Hz 16) Internal electric source:(DC)24V 17)Battery capacity ≥ 2.4AH
