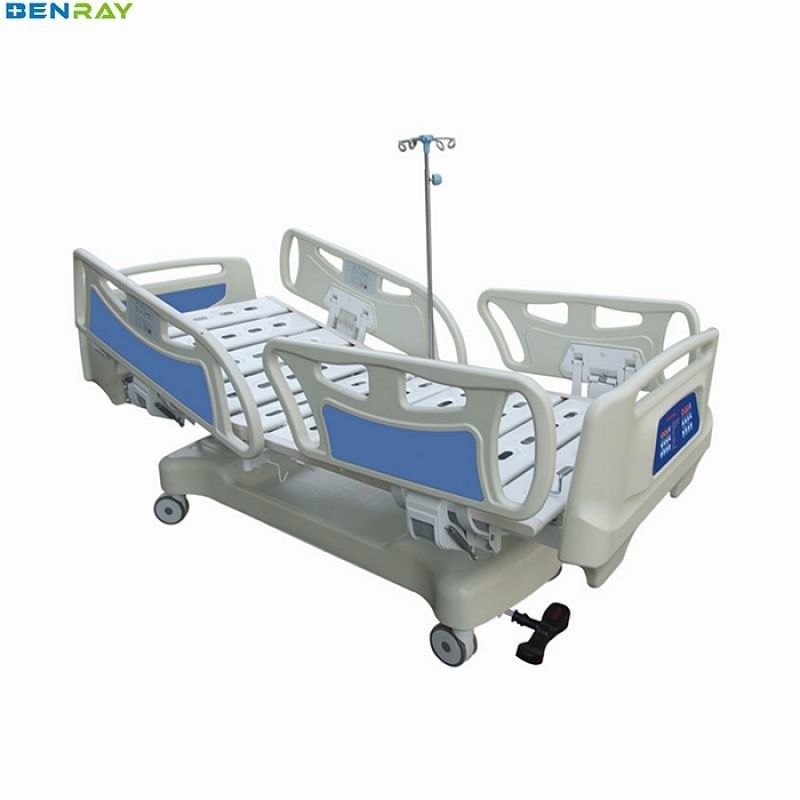

5-Function Electric Hospital Bed, Vertical columns system
BR-HBE10
Features:
1) Overallsize (L*W*H):2230*1050*520-760mm, platform size:1960*900mm
2) Frame: steel, treated by sand-balsting and electrostatic powder-coating
3) Headboard/footboard:ABS,Detachable
4) Side rail: Detachable, ABS
5) Rail controller: embedded on side rail at head side
6) Nurse controller: embedded on footboard,all functions can be operated from it,and there are locks to control wrong operation by patients themselves from the side rails.
7) Motor: Linak motor from Denmark,with backup batteries
8) Manual CPR handles at head side
9) Castors: four Central-controlled silent wheels, φ125mm; One rise and fall guide wheel
10)Weight load: static safe load 400kg, dynamic safe load: 170kg
11)Standard accessories:I.V pole 1pc, IV pole holes 4pcs, Drainage hooks 2pcs, angle indicator for backrest 2pcs
5-function:
1) Backrest max upward angle: 70°
2) Footrest max upward angle: 30°
3) Height adjustment: 520-760mm
4) Trendelenburg: 12°
5)Anti-trendelenburg: 12°
